Laser Marking
Compact Class 1 station for small to medium runs
Video courtesy of ACI Laser.
Overview
Workstation Classic is the compact enclosure for marking smaller components in small to medium quantities. A motorised Z-axis is fitted as standard, so parts of different heights can be brought into focus without re-fixturing, and it takes any of the ACI lasers. As a turnkey Class 1 solution it needs no additional safety equipment — you stand at it and run it. Where the parts are larger, the Classic XL variant adds working area and marking field.

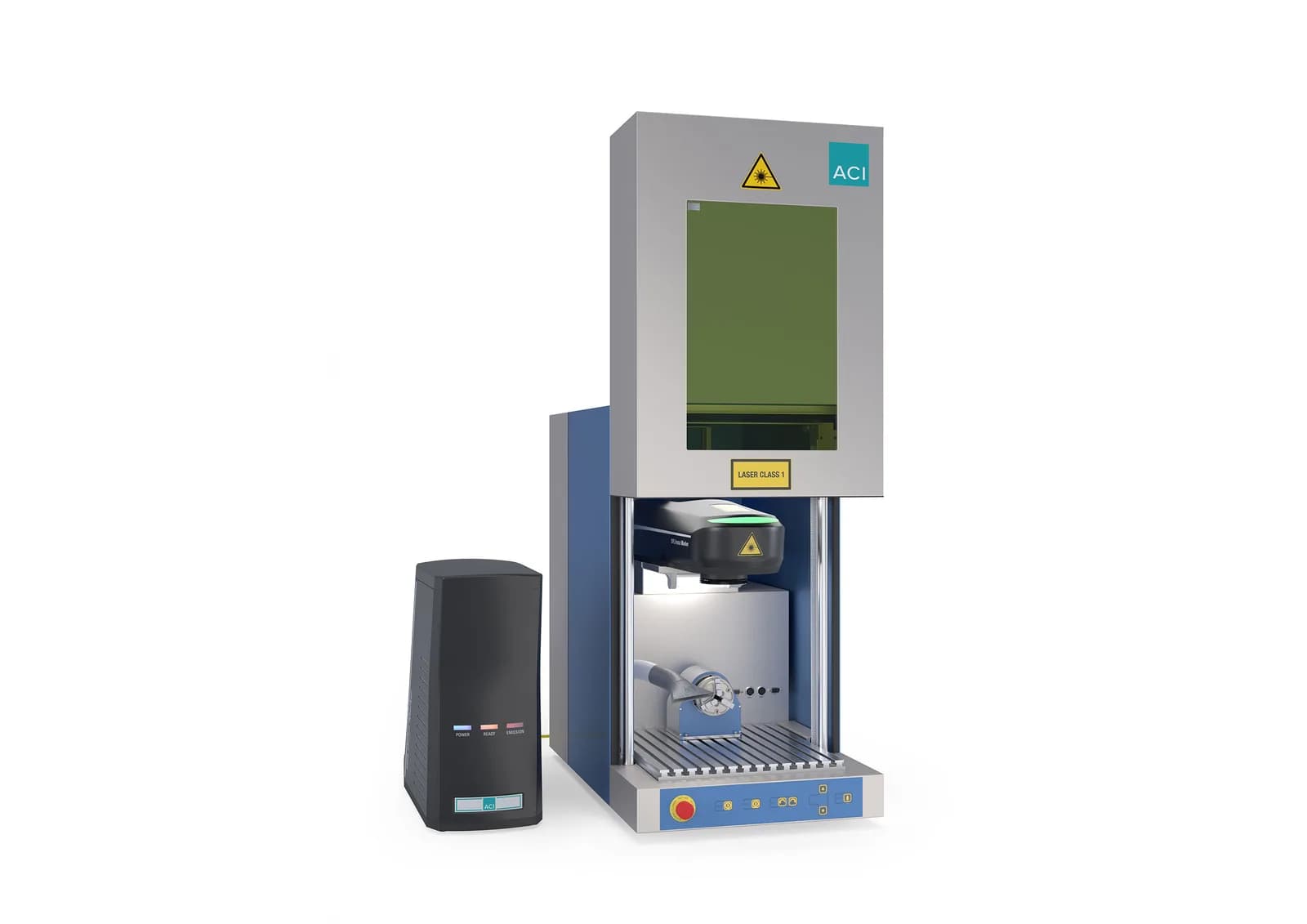

The XL variant offers a larger working area for larger components, and the greater working distance opens up further processing options when paired with a suitable lens. Its laser safety window is generously sized, which makes the marking process easier to monitor.
Every ACI system is driven by Magic Mark, the supplier's own marking software. It handles text, graphics, barcodes and Data Matrix codes, serial numbers and logos, and will mark right around a cylindrical part without a rotary attachment.
Operator permissions are set per user group, so a machine on the shop floor can be locked to running jobs while programming stays with the people who own it. On an automated line Magic Mark runs unattended and exchanges job data with your existing systems; plug-ins add code generation and scripting where a process needs them.
Workstation Classic is a turnkey Class 1 system, so it guarantees operator safety without any additional safety equipment on your side.
Extraction and filter systems for the fumes produced during laser processing are available as an accessory; the station has the connection for an external unit built in. The bench design is ergonomically arranged, which matters on a station an operator stands at all day.
The station is the housing; the mark comes from whichever laser is fitted inside it. Any of these can be specified.
