Features
- 100% air-cooled, thermoelectric — no water circuit
- Low power consumption and low operating costs
- Controlled from an external PC
- Integration connections available for production lines
- Optional lenses for different marking field sizes
Laser Marking

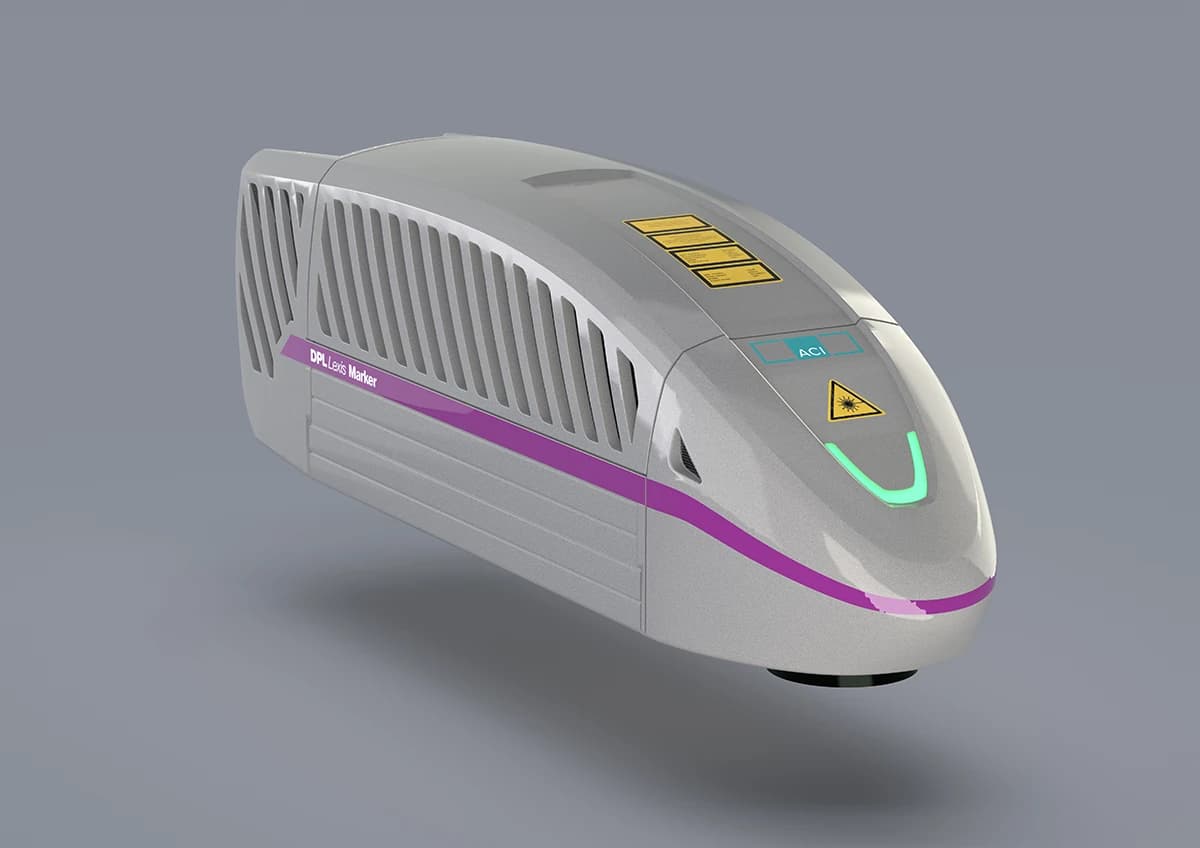

Business Diode UV
Cold, high-contrast marking on plastics and glass
Overview
Cold, high-contrast marking on plastics and glass
Business Diode UV is a diode-pumped Nd:YVO₄ system built for precise marking of plastics and glass. It puts very little heat into the workpiece, so even sensitive products take a high-contrast mark with almost no thermal or mechanical stress. Thermoelectric air cooling makes it stable and low-maintenance — there is no air/water or water cooling system to service.
| Material & process | Rating |
|---|---|
| Temper metal | Good |
| Engrave metal | Good |
| Remove metal | Very good |
| Foam plastic | Very good |
| Carbonise plastic | Very good |
| Engrave plastic | Not suitable |
| Foil removal | Very good |
| Foil colour change | Very good |
| Glass | Good |
| Ceramics | Good |
| Wood, paper, leather | Good |
Very goodGoodNot suitable
Ratings published by ACI Laser for each model in this series.
Magic Mark control software
Every ACI system is driven by Magic Mark, the supplier's own marking software. It handles text, graphics, barcodes and Data Matrix codes, serial numbers and logos, and will mark right around a cylindrical part without a rotary attachment.
Operator permissions are set per user group, so a machine on the shop floor can be locked to running jobs while programming stays with the people who own it. On an automated line Magic Mark runs unattended and exchanges job data with your existing systems; plug-ins add code generation and scripting where a process needs them.
Certified functional safety
The laser itself is a Class 4 device. Its safety circuit is certified to EN ISO 13849 at Performance Level e, Category 4 — the highest level in the standard — so a fault brings the system to a safe state rather than an uncertain one.
Installed in one of the laser stations, the whole system becomes Class 1: safe to stand at, with no additional screens, interlocks or eyewear to manage. That is the usual arrangement for a manual marking bay, and the reason most of these lasers are quoted together with a station.
Laser stations & accessories
A Class 4 laser is normally supplied inside a station, which makes the installation Class 1 and ready to use. These are the stations this system can be fitted to.
