Laser Marking
Ruggedised fibre marking for the production line
Video courtesy of ACI Laser.
Overview

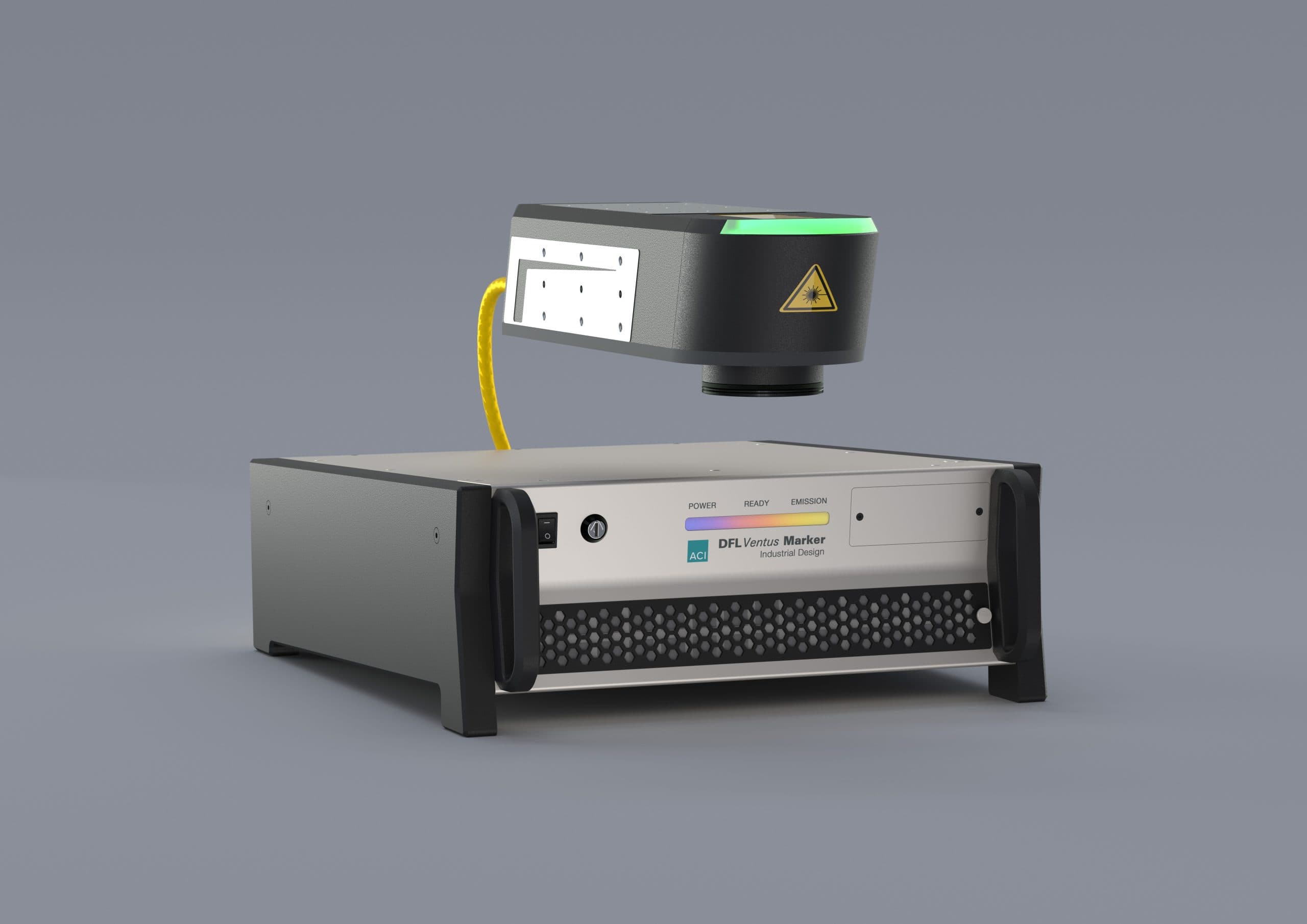

This is the industrial-housing version of the compact DFL Ventus fibre marker, built to sit in a production line rather than on a bench. The enclosure is sealed against ingress of dust and splashing water, and mounts easily wherever it is needed. It is supplied either as a 19-inch built-in unit or as a tabletop module, in a range of power classes and beam qualities — the Business Fibre series covers 20 W to 100 W — so the machine can be matched to the marking speed and mark quality the job calls for.
| Material & process | Rating |
|---|---|
| Temper metal | Very good |
| Engrave metal | Very good |
| Remove metal | Very good |
| Foam plastic | Very good |
| Carbonise plastic | Good |
| Engrave plastic | Not suitable |
| Foil removal | Very good |
| Foil colour change | Very good |
| Glass | Not suitable |
| Ceramics | Good |
| Wood, paper, leather | Not suitable |
Ratings published by ACI Laser for each model in this series.
Every ACI system is driven by Magic Mark, the supplier's own marking software. It handles text, graphics, barcodes and Data Matrix codes, serial numbers and logos, and will mark right around a cylindrical part without a rotary attachment.
Operator permissions are set per user group, so a machine on the shop floor can be locked to running jobs while programming stays with the people who own it. On an automated line Magic Mark runs unattended and exchanges job data with your existing systems; plug-ins add code generation and scripting where a process needs them.
The laser itself is a Class 4 device. Its safety circuit is certified to EN ISO 13849 at Performance Level e, Category 4 — the highest level in the standard — so a fault brings the system to a safe state rather than an uncertain one.
Installed in one of the laser stations, the whole system becomes Class 1: safe to stand at, with no additional screens, interlocks or eyewear to manage. That is the usual arrangement for a manual marking bay, and the reason most of these lasers are quoted together with a station.
A Class 4 laser is normally supplied inside a station, which makes the installation Class 1 and ready to use. These are the stations this system can be fitted to.
