Onsite Nitrogen Generation Systems
Save money and save time with plug-n-play nitrogen generators.

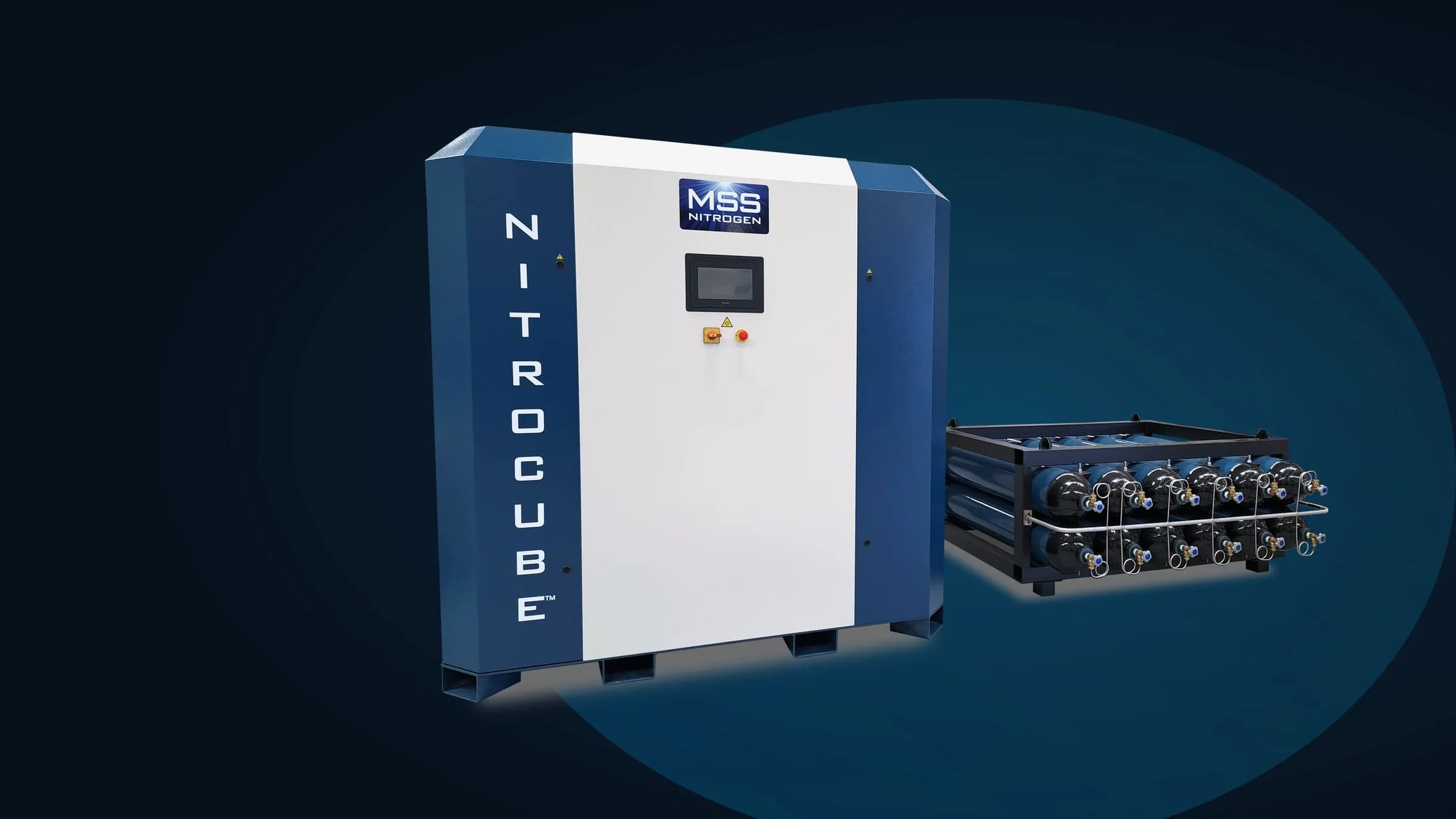

High Pressure NitroCube.
Nitrogen Generation
We’re market leaders in the supply of in-house nitrogen generation systems
You could be saving every month producing your own nitrogen cutting and assist gas with our innovative patent-pending NitroCube systems. By ultilising our knowledge of laser cutting and innovative patent-pending technology, our NitroCube systems are tailored to the exact needs of individual clients, providing pure, high pressure gas, on demand.
- Over 400 lasers running with MSS equipment
- Our laser expertise GUARANTEES correct sizing, purity and flow rates
- Unsurpassed aftersales support from MSS dedicated nitrogen engineers
- The Design and Manufacture of our MSS NitroCube is ISO 9001:2015 certified by BSI under certificate number FM 723849
Why NitroCube
Built for laser cutting economics
Generating your own assist gas changes the running cost of every cut. Five reasons fabricators move to NitroCube:
Low Cost + Environmentally Friendly
Plug-n-Play
24 Hour Operation
No Oxide Edge
Self Financing
NitroCube Range
NitroCube generates high-purity nitrogen on site from compressed air, at the flow rates and purities fibre laser cutting needs — larger nozzles draw more gas, and bottled supply becomes the constraint long before the laser does. Five sizes cover 312 to 1200 m³ per day, all in the same footprint.
Purity is selectable: run at 99.98% for general cutting, or 99.9975% where the cut face matters, with 99.999% available on request. The higher grade costs more compressed air, which is why both figures are given below.
Download the NitroCube brochure
| Specification | NitroCube1 | NitroCube2 | NitroCube3 | NitroCube4 | NitroCube5 |
|---|---|---|---|---|---|
| Nitrogen production (m³/day) | 312 | 480 | 720 | 960 | 1200 |
| Nitrogen purity (%) | 99.9975 or 99.98 | 99.9975 or 99.98 | 99.9975 or 99.98 | 99.9975 or 99.98 | 99.9975 or 99.98 |
| Compressed air supply at 99.9975% (m³/h) | 76 | 122 | 185 | 252 | 304 |
| Compressed air supply at 99.98% (m³/h) | 64 | 94 | 143 | 199 | 274 |
| Nitrogen pressure (bar) | 300 | 300 | 300 | 300 | 300 |
| Nitrogen storage (m³) | 144 | 288 | 288 | 288 | 288 |
| Dimensions excluding storage (cm) | 220L x 240W x 220H | 220L x 240W x 220H | 220L x 240W x 220H | 220L x 240W x 220H | 220L x 240W x 220H |
Higher purity of 99.999% also available. Nitrogen storage can easily be increased. Figures from the MSS NitroCube brochure.
Answers
Frequently Asked Questions
Our engineers are happy to talk through sizing, purity and installation for your shop.
A nitrogen gas machine generates high-purity nitrogen on site for cutting and assist gas, eliminating deliveries, reducing costs, and preventing run-outs during production.
NitroCube units are plug-and-play, just connect compressed air and power. They can be installed indoors, outdoors or on a mezzanine with minimal downtime.
Experience since the 1960s
Expert Advice and Servicing
Our years of experience in the sheet metal manufacturing and engineering business stretches back to the 1960s. This means you receive expert advice and service from experienced engineers who understand the needs of your business. GWB Machine Tools is Australia's sole distributor for LVD quality machinery, Lissmac handling and processing machines, MSS nitrogen generators and Kohler leveling machines.
