Features
- 100% air-cooled
- Low power consumption
- Controlled from an external PC
- Compact and light enough to integrate easily
- 3 m fibre length
- Choice of lenses for different marking field sizes
Laser Marking

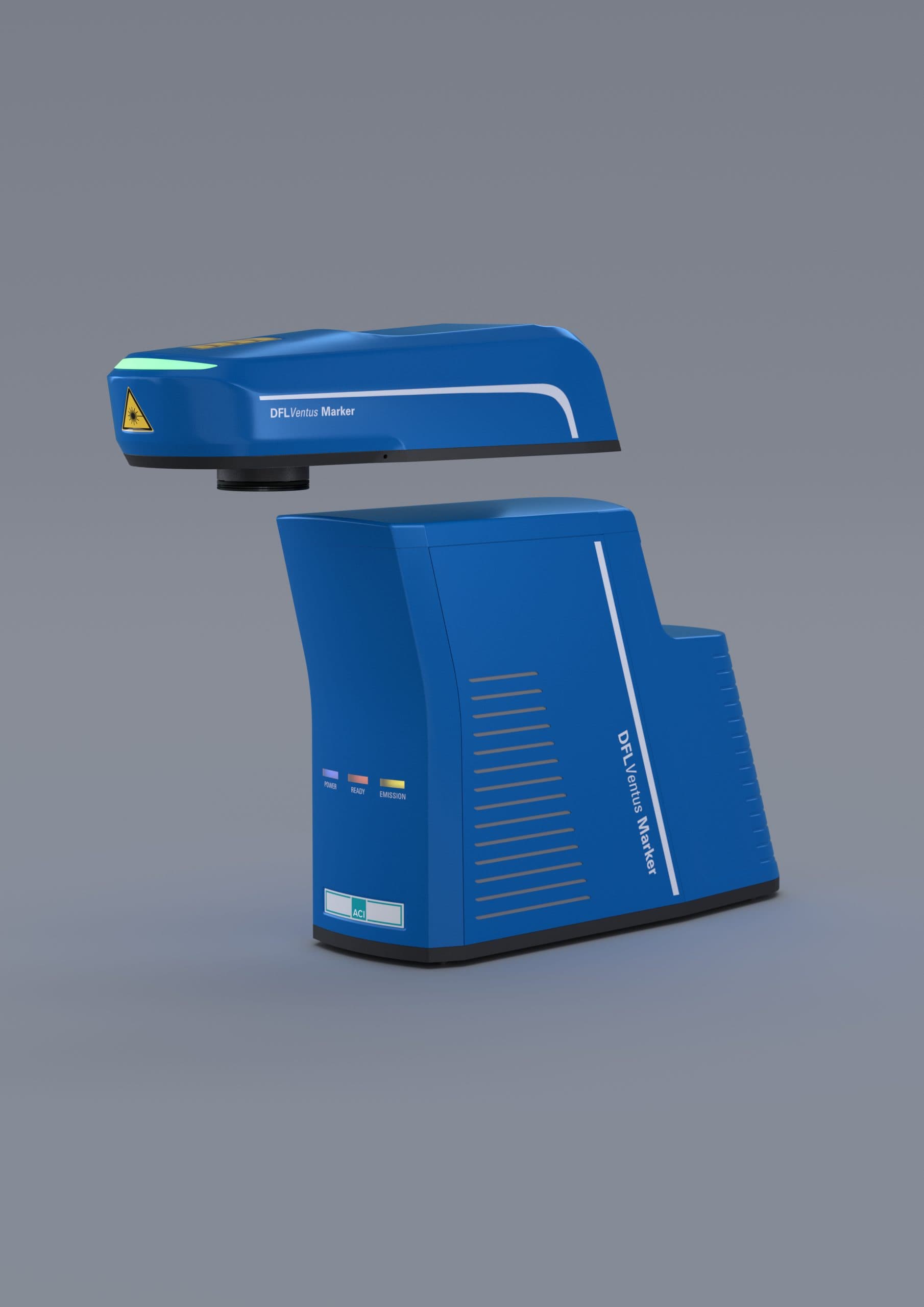

Economy Fiber IR
Entry-level fibre marking, black on stainless
Watch it work
Video courtesy of ACI Laser.
Overview
Entry-level fibre marking, black on stainless
Economy Fiber IR covers standard fibre marking on metal and plastic surfaces at a lower cost than the Business Fiber systems. It is a straightforward, reliable machine — notable for producing genuine black marks on stainless steel — and automatic focusing keeps results repeatable across parts of different heights and widely varying tolerances. A sensible entry point into laser material processing, and capable of being used as an integration element in an automated system later.
| Material & process | DFL Ventus Marker Eco | DFL Ventus Marker Eco - Industrial Design |
|---|---|---|
| Temper metal | Very good | Very good |
| Engrave metal | Very good | Very good |
| Remove metal | Very good | Very good |
| Foam plastic | Very good | Very good |
| Carbonise plastic | Very good | Very good |
| Engrave plastic | Not suitable | Not suitable |
| Foil removal | Very good | Very good |
| Foil colour change | Good | Good |
| Glass | Not suitable | Not suitable |
| Ceramics | Good | Good |
| Wood, paper, leather | Not suitable | Not suitable |
Very goodGoodNot suitable
Ratings published by ACI Laser for each model in this series.
Optional accessories
- Automatic focusing of the laser beam (Auto Focus)
- Vision systems for automatic object identification (AOI) and camera-assisted mark positioning (CPM)
- Code reading systems
- External USB output, for example for camera applications
- External focus finder
Magic Mark control software
Every ACI system is driven by Magic Mark, the supplier's own marking software. It handles text, graphics, barcodes and Data Matrix codes, serial numbers and logos, and will mark right around a cylindrical part without a rotary attachment.
Operator permissions are set per user group, so a machine on the shop floor can be locked to running jobs while programming stays with the people who own it. On an automated line Magic Mark runs unattended and exchanges job data with your existing systems; plug-ins add code generation and scripting where a process needs them.
Certified functional safety
The laser itself is a Class 4 device. Its safety circuit is certified to EN ISO 13849 at Performance Level e, Category 4 — the highest level in the standard — so a fault brings the system to a safe state rather than an uncertain one.
Installed in one of the laser stations, the whole system becomes Class 1: safe to stand at, with no additional screens, interlocks or eyewear to manage. That is the usual arrangement for a manual marking bay, and the reason most of these lasers are quoted together with a station.
Laser stations & accessories
A Class 4 laser is normally supplied inside a station, which makes the installation Class 1 and ready to use. These are the stations this system can be fitted to.
