Laser Marking
Nd:YAG marking across metals, plastics and ceramics
Overview

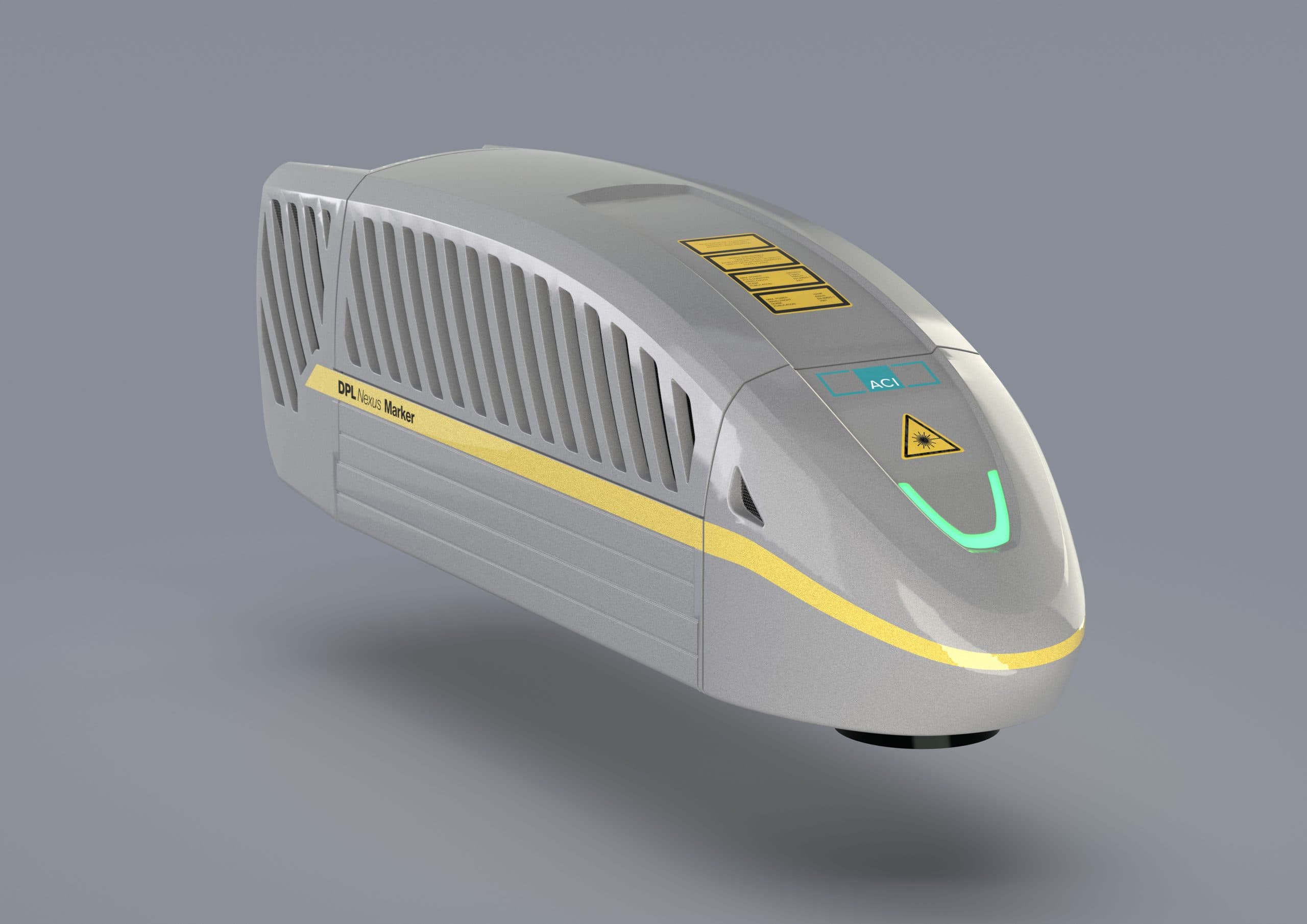

Business Diode IR is a diode-pumped Nd:YAG system whose beam quality produces clean, precise marks on metals, plastics and ceramics. Several power levels are available, so the machine can be matched to the marking time the line allows. Thermoelectric air cooling means long running periods without the maintenance a water circuit brings. This series covers the machines previously sold as the DPL Magic, DPL Genesis and DPL Nexus markers.
| Material & process | DPL Magic Marker | DPL Genesis Marker | DPL Nexus Marker |
|---|---|---|---|
| Temper metal | Very good | Very good | Very good |
| Engrave metal | Good | Good | Good |
| Remove metal | Very good | Very good | Very good |
| Foam plastic | Very good | Very good | Very good |
| Carbonise plastic | Very good | Very good | Very good |
| Engrave plastic | Not suitable | Not suitable | Not suitable |
| Foil removal | Very good | Very good | Very good |
| Foil colour change | Very good | Very good | Very good |
| Glass | Not suitable | Not suitable | Not suitable |
| Ceramics | Good | Good | Good |
| Wood, paper, leather | Not suitable | Not suitable | Not suitable |
Ratings published by ACI Laser for each model in this series.
Every ACI system is driven by Magic Mark, the supplier's own marking software. It handles text, graphics, barcodes and Data Matrix codes, serial numbers and logos, and will mark right around a cylindrical part without a rotary attachment.
Operator permissions are set per user group, so a machine on the shop floor can be locked to running jobs while programming stays with the people who own it. On an automated line Magic Mark runs unattended and exchanges job data with your existing systems; plug-ins add code generation and scripting where a process needs them.
The laser itself is a Class 4 device. Its safety circuit is certified to EN ISO 13849 at Performance Level e, Category 4 — the highest level in the standard — so a fault brings the system to a safe state rather than an uncertain one.
Installed in one of the laser stations, the whole system becomes Class 1: safe to stand at, with no additional screens, interlocks or eyewear to manage. That is the usual arrangement for a manual marking bay, and the reason most of these lasers are quoted together with a station.
A Class 4 laser is normally supplied inside a station, which makes the installation Class 1 and ready to use. These are the stations this system can be fitted to.
