Laser Marking
Sealed CO₂ marking for plastics, glass and organics
Video courtesy of ACI Laser.
Overview

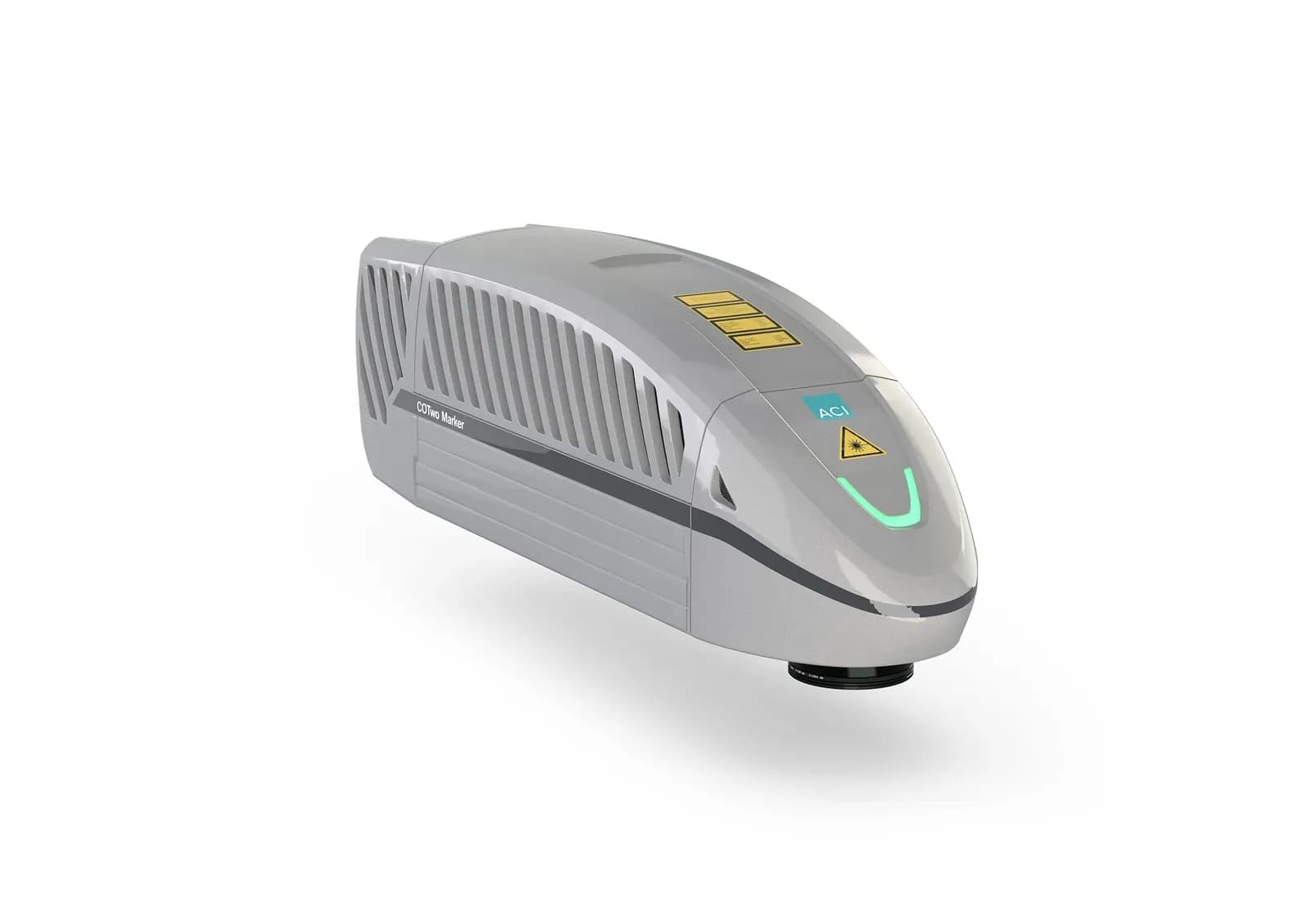

Business CO2 is a sealed gas laser working at 10,600 nm — the wavelength that marks the materials a fibre or diode system cannot touch: plastics, glass, timber, paper, leather and ceramics. It needs no external CO₂ supply and no water circuit, so there is no bottle to manage and running costs stay low. An optical focus finder and a preview function make setting a job up quick, and the system is available as a 20 W or a 30 W unit for batch sizes from one-offs to long production runs.
| Material & process | Rating |
|---|---|
| Temper metal | Not suitable |
| Engrave metal | Not suitable |
| Remove metal | Good |
| Foam plastic | Not suitable |
| Carbonise plastic | Not suitable |
| Engrave plastic | Very good |
| Foil removal | Not suitable |
| Foil colour change | Not suitable |
| Glass | Very good |
| Ceramics | Good |
| Wood, paper, leather | Very good |
Ratings published by ACI Laser for each model in this series.
Every ACI system is driven by Magic Mark, the supplier's own marking software. It handles text, graphics, barcodes and Data Matrix codes, serial numbers and logos, and will mark right around a cylindrical part without a rotary attachment.
Operator permissions are set per user group, so a machine on the shop floor can be locked to running jobs while programming stays with the people who own it. On an automated line Magic Mark runs unattended and exchanges job data with your existing systems; plug-ins add code generation and scripting where a process needs them.
The laser itself is a Class 4 device. Its safety circuit is certified to EN ISO 13849 at Performance Level e, Category 4 — the highest level in the standard — so a fault brings the system to a safe state rather than an uncertain one.
Installed in one of the laser stations, the whole system becomes Class 1: safe to stand at, with no additional screens, interlocks or eyewear to manage. That is the usual arrangement for a manual marking bay, and the reason most of these lasers are quoted together with a station.
A Class 4 laser is normally supplied inside a station, which makes the installation Class 1 and ready to use. These are the stations this system can be fitted to.
