Strippit P

Strippit P

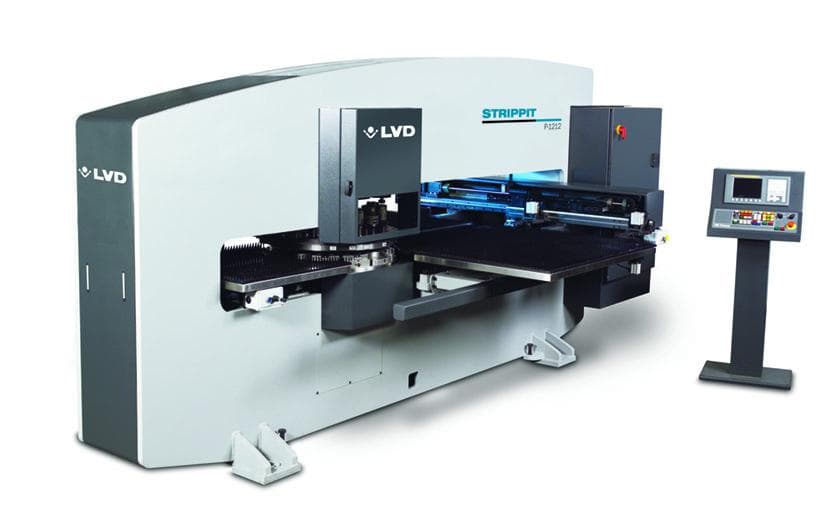

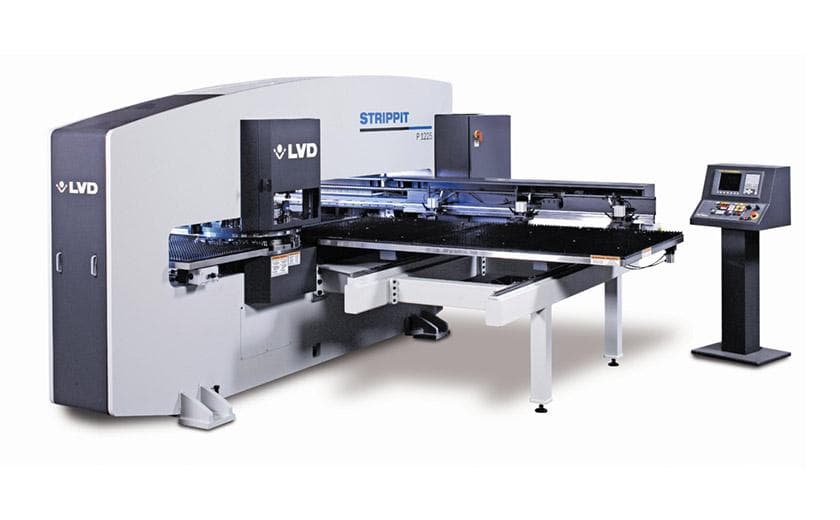

Cost-efficient CNC punching machine
For cost-efficient CNC punching in a reliable and user-friendly machine there’s the P-Series. Hydraulic ram technology delivers the highest punching rates of any punch press in its class. The ram system, rugged frame and CNC control ensure tight tolerances and consistent punching accuracy. The control offers simplicity for operator input of critical dimensions. The P-Series is ideal for shorter production runs, prototype production, job shop environments and cellular manufacturing.

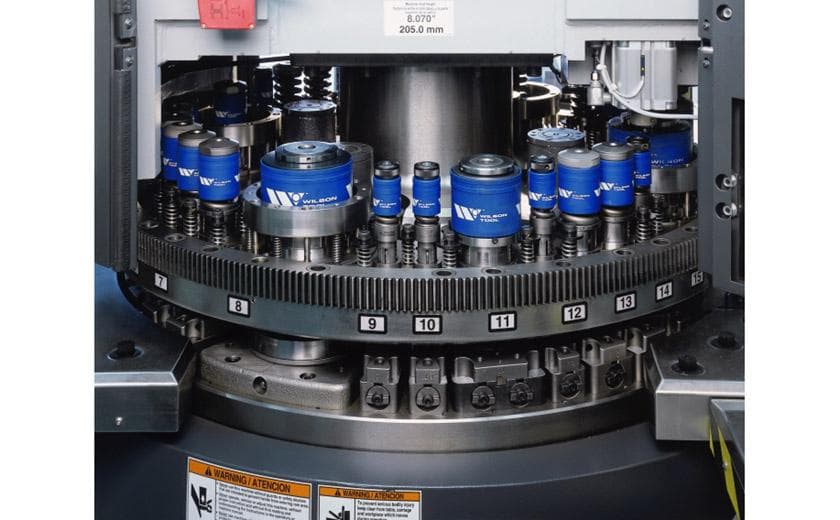

  • Flexible 33-station thick turret
  • Quick-change die holders

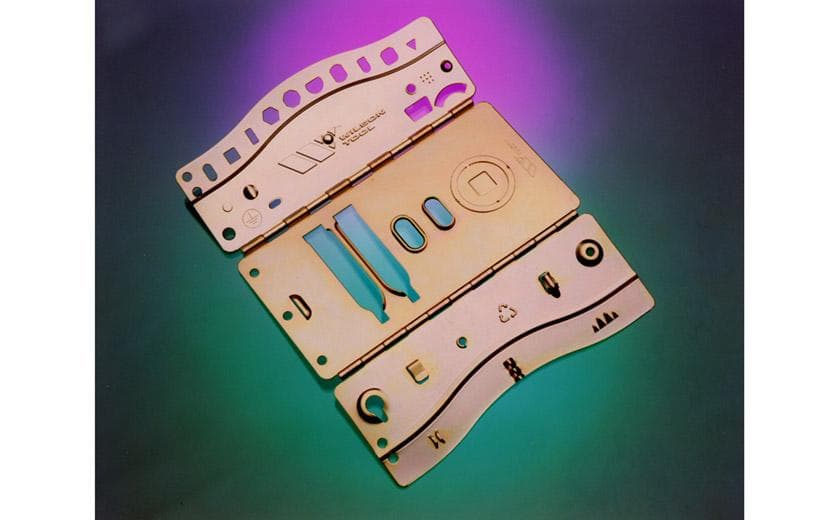

  • Wheel, tapping and full form tool capabilities
  • Smart Clamp ensures the smallest possible no-punch zones
  • 0.984″ (25 mm) feed clearance for more forming capacity
  • Easy-to-use Fanuc CNC control
  • CADMAN-P programming software
  • ABS automatic tool lubrication
  • P 1212 (20 ton – 49.21″ x 49.21″ [1250 x 1250 mm])
  • P 1225 (20 ton – 49.21″ x 98.4″ [1250 x 2500 mm])
  • P 1525 (20 ton – 60″ x 98.4″ [1524 x 2500 mm])
  • Maximum material thickness: 1/4″ (6,35 mm)
  • Maximum hit rate: up to 300 HPM on 0.984″ (25 mm) centers

Expert Advice and Servicing

Our experience in the sheet metal manufacturing and engineering business stretches back to the 1960s. This means you receive expert advice and service from engineers who understand your business. GWB Machine Tools is Australia’s sole distributor for LVD quality machinery, Flow Corporation Water-jet Cutting Machines, Lissmac handling and processing machines and DCM Tool Grinders.
