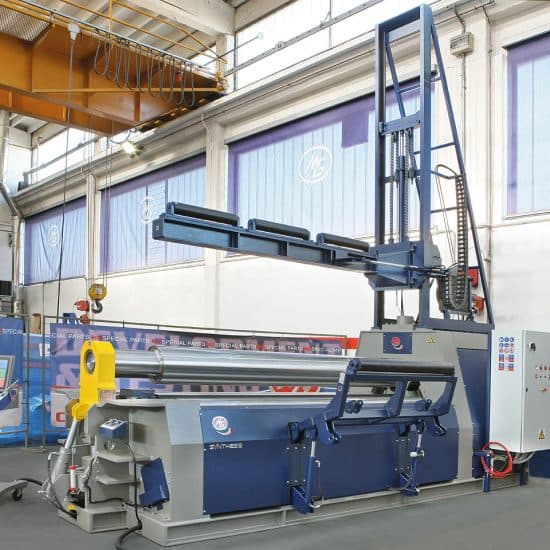

MG Series K 4 Roll Plate Bending Machine

Overview

MG Series K 4 Roll Plate Bending Machine

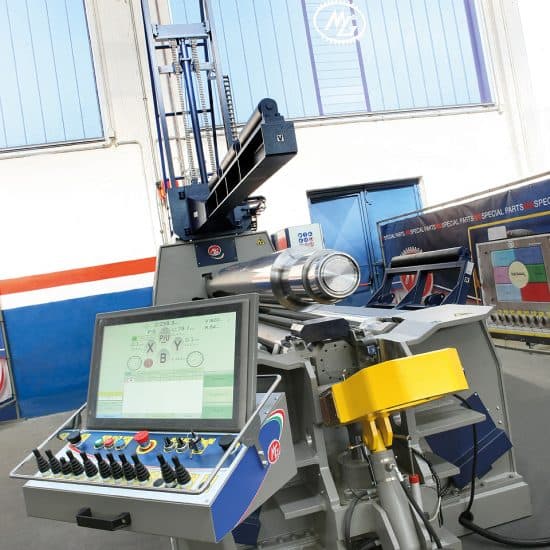

The K series introduces a fresh concept in bending technology, offering exceptional versatility and precision. These machines can operate as either a 3-roll or 4-roll bender, featuring an exceptionally short pre-bending section compared to conventional machines. The minimal straight section—just 1.8 times the sheet thickness—ensures both practical and aesthetic advantages for the finished product, delivering superior results regardless of the material or geometry. Designed with variable geometry, the K series is engineered for multi-diameter bending with unmatched accuracy. Advanced numerical control allows operators to input sheet parameters via a touchscreen interface, which automatically generates the optimal bending programme. The system monitors execution in real time, adjusting coordinates as needed to maintain precision throughout the process. For complex multi-diameter applications, interpolated movement speeds are automatically selected and continuously controlled to ensure consistent performance. The system also supports wireless communication, data collection, process analysis, and 3D visualisation of the final part. Built for reliability and performance, the K series maintains roll parallelism through robust control systems, with planetary gearboxes directly coupled to the rolls to concentrate the machine’s force precisely where it is needed for bending. This combination of flexibility, precision, and strength makes the K series an ideal solution for high-performance sheet metal forming.
