Overview
The ultimate bending system
Ulti-Form takes automated bending a step forward with a ToolCell-inspired automated tool changing press brake using a built-in tooling warehouse and equipped with Easy-Form® Laser adaptive bending technology. Programming for both the press brake and robot is handled offline with no robot teaching needed. An auto-adaptive robot gripper designed by LVD automatically adjusts to the workpiece size, allowing different part geometries to be processed without a gripper change.
- Automated tool changer press brake reduces setup time
- Easy-Form® Laser adaptive bending technology ensures part accuracy
- KUKA robot and press brake work in synergy to minimize changeover time
- Programming is handled completely offline, no robot teaching
- Auto-adapting, universal gripper handles part sizes from 50 x 100 mm up to 1200 x 800 mm
- High productivity in a compact space, including three input pallets and output zone for up to 10 pallets
- Automated pallet dispenser and conveyor system for pallet transfer
- Intuitive 15” Touch-B touch screen control
- Fully integrated with LVD’s CADMAN® software suite
- Handles short- and long-run production
- Automatic or manual operation for greater flexibility
- CADMAN-B programming software
- Ulti-Form 135/30
- 8 x 10 metre cell footprint
- Bend parts from 50 x 100 mm up to 1200 x 800 mm, weighing up to 25 kgs

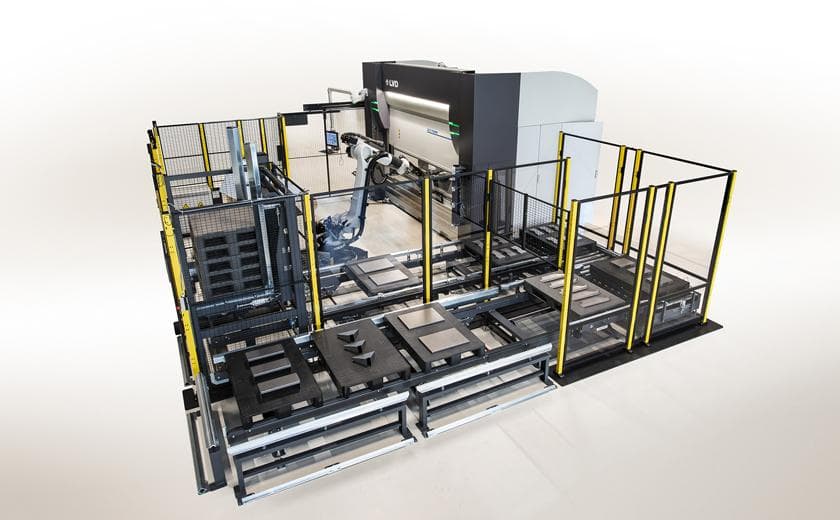

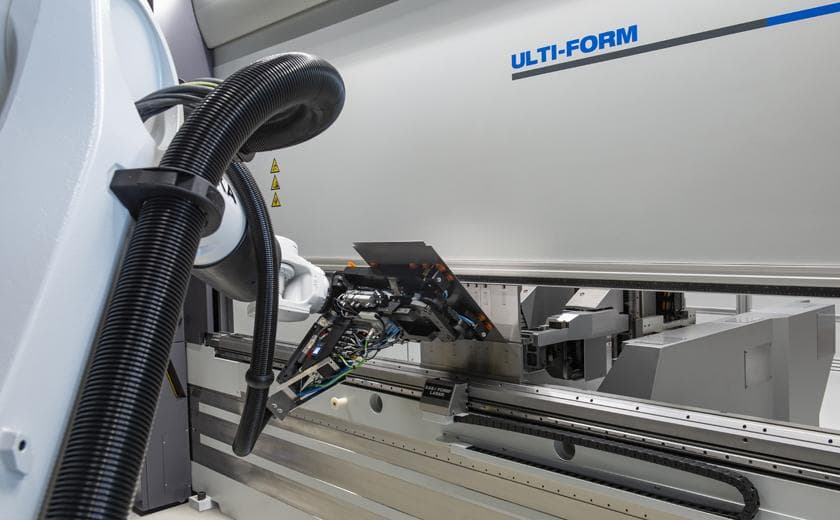

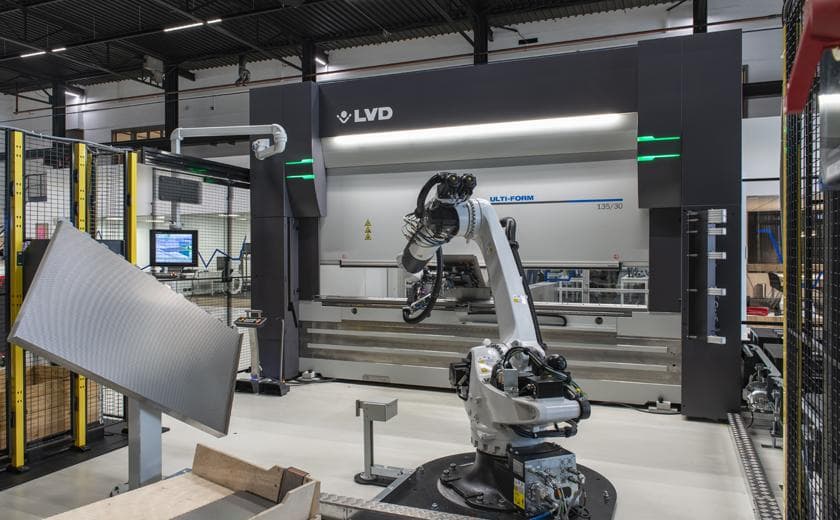

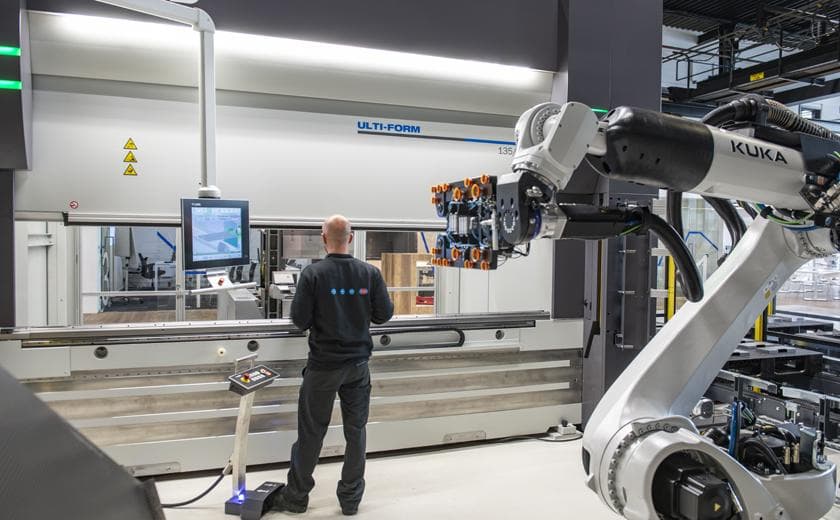

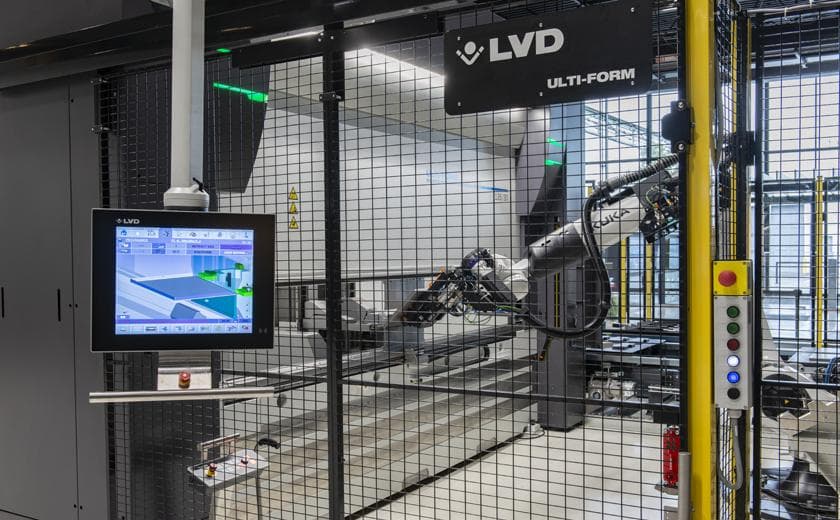

Gallery
