Overview
Robotic bending for large parts

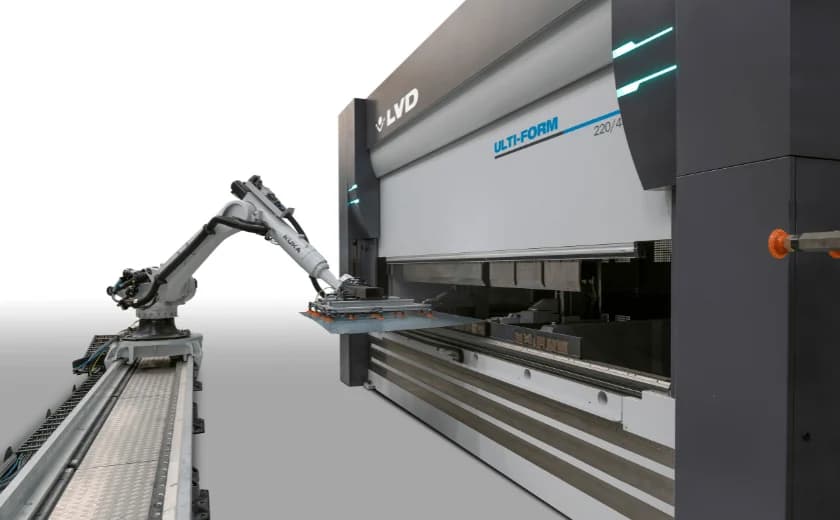

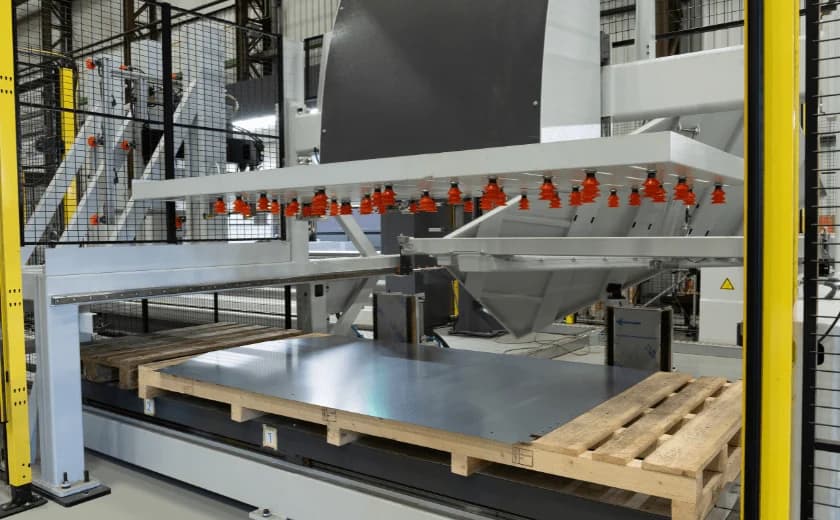

RBS 80 is the heavy end of the platform: a fully automated cell with the robot on a guided rail so it can serve a long press brake and reach input and output stations along its length. Parts run to 3050 x 1250 mm and 80 kg. Automatic gripper change means a cell can work through a batch of dissimilar parts without an operator, and Easy-Form® Laser compensates in-process for the material variation that otherwise shows up as scrap on long bends.
- Fully automated cell with the robot on a guided rail
- Automatic gripper change for mixed batches
- Offline programming via CADMAN-SIM — no robot teaching
- Easy-Form® Laser adaptive bending compensates for material variation
- Robotic or manual operation
- CADMAN® suite with bend programming and ERP connectivity
- Touch-i4 tablet for real-time KPIs and part validation
- Maximum part size: 3050 x 1250 mm
- Maximum part weight: 80 kg
- Maximum profile length: 3000 mm
- Press brake options: PPEB-8 (135/30 or 220/42), Easy-Form-9 (135/30 or 220/42), ToolCell 220/40
- Bending length: 3000, 4000 or 4200 mm
- Pressing force: 135 or 220 ton
- Five-step configuration — payload, press brake, input station, output method, gripper
- Multiple gripper solutions with automatic change
- Easy-Form® Laser adaptive bending
- CADMAN® software suite with ERP connectivity
