Robotic Bending Systems
RBS 40
Configurable robotic bending for mid-sized parts
Overview
Configurable robotic bending for mid-sized parts
RBS 40 is the platform to configure when the part mix is broad. The press brake, the input station and the output station are all choices rather than fixtures, so the cell can be specified around what you actually make — PPED, PPEB, Easy-Form or ToolCell, fed by input boxes, a preloader or a pallet tilter, unloaded to pallets, drop units or a conveyor. Programming stays offline, and the cell can be run by hand when a one-off job does not warrant setting up the robot.
- Configurable press brake, input and output stations
- Offline programming with no robot teaching required
- Adaptive bending technology on selected press brakes
- Manual or robotic operation

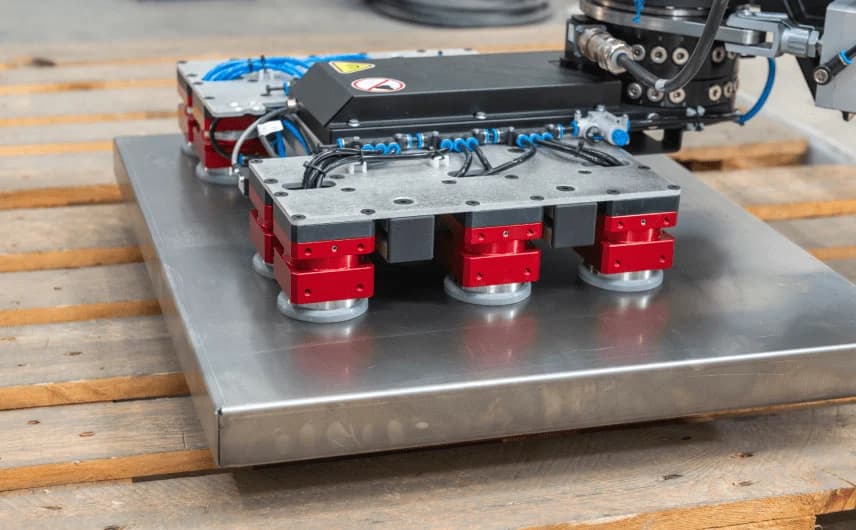

- Multiple gripper solutions
- CADMAN® software integration across the process
- Touch-i4 tablet for real-time KPIs
- Maximum part size: 1600 x 1200 mm
- Maximum part weight: 40 kg
- Maximum profile length: 2000 mm
- Press brake options: PPED-7 80/25, PPEB-8 (80/25 or 135/30), Easy-Form-9 (80/25, 135/30 or 220/30), ToolCell 135/30
- Bending length: 2500 or 3000 mm
- Pressing force: 80, 135 or 220 ton
- Input: input boxes, preloader, pallet tilter
- Output: output pallets, drop units, pallet dispenser, conveyor systems
- Multiple gripper solutions
- Easy-Form® Laser adaptive bending
- CADMAN® software suite

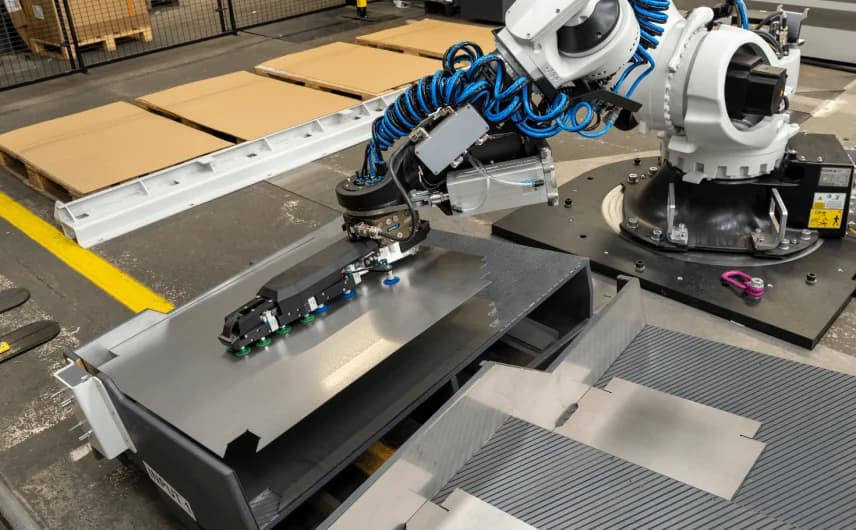

Gallery
