Overview
Robotic bending for small parts

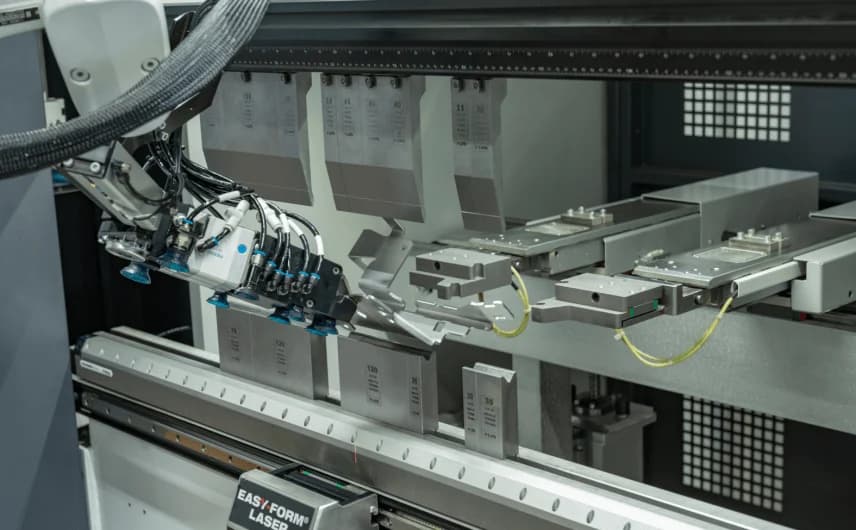

RBS 4 is the entry point into LVD's robotic bending platform: a compact cell built around either the electric-drive Dyna-Press Pro or the hydraulic PPED, sized for small parts run in volume. Programming happens entirely offline in CADMAN-SIM — there is no robot teaching, so a new part goes from drawing to bent sample without anyone standing at a pendant. The cell runs robotically or by hand, which matters on a mixed order book where not every job justifies automation.
- Compact robotic cell for small-part bending
- Offline programming with no robot teaching required

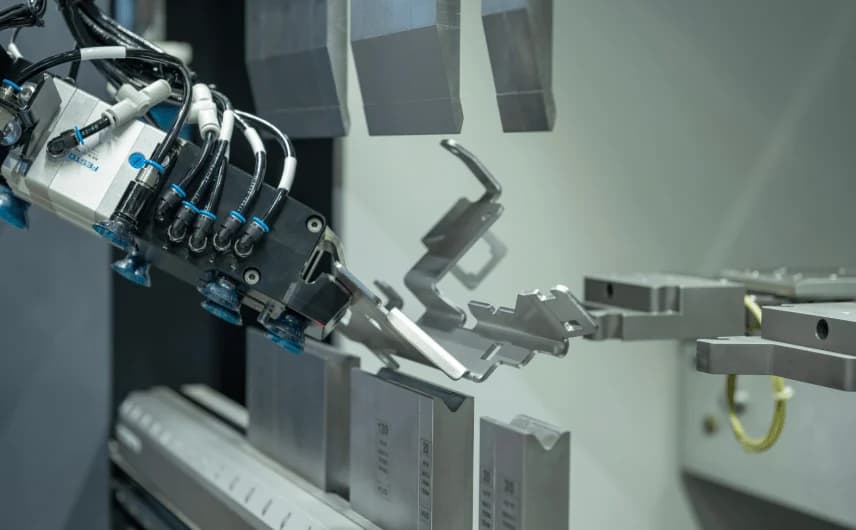

- Universal gripper with manual change
- Robotic or manual operation from the same cell
- Easy-Form® Laser adaptive bending (optional)
- CADMAN® software suite integration
- Touch-i4 tablet for real-time KPIs
- Maximum part size: 600 x 400 mm
- Maximum part weight: 4 kg
- Maximum profile length: 600 mm
- Press brake options: PPED-7 50/20 (hydraulic) or Dyna-Press Pro (EFL) 40/15 (electric-drive)
- Bending length: 1500 or 2000 mm
- Pressing force: 40 or 50 ton
- CADMAN-SIM for automatic program generation
- CADMAN-B bend programming
- CADMAN-SDI drawing import
- CADMAN-JOB job tracking
- Easy-Form® Laser adaptive bending
