Overview

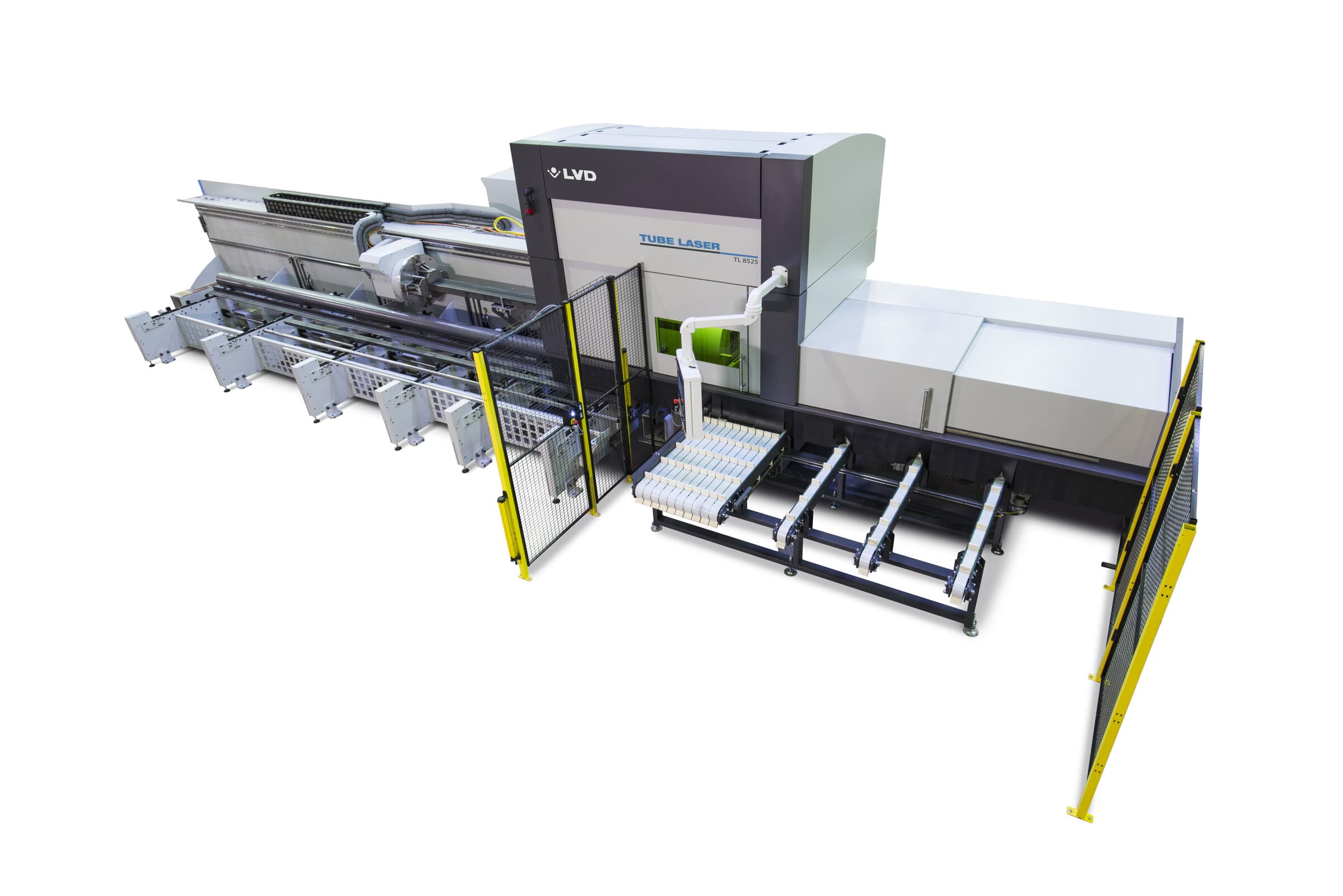

Full-featured tube laser cutting machine
TL 8525 is a high-capacity tube laser cutting machine designed for top productivity. It handles lengths up to 8500 mm and diameters up to 250 mm round or square. The TL 8525 comes equipped with leading-edge features, including a 45-degree tilt-axis cutting head with NC-Focus, 6-position front loader, 2 or 4 kW IPG fiber laser, and a large X-axis cutting head range of 1190 mm to maximize material usage.
- Accommodates tube and profile lengths up to 8500 mm, diameters up to 250 mm

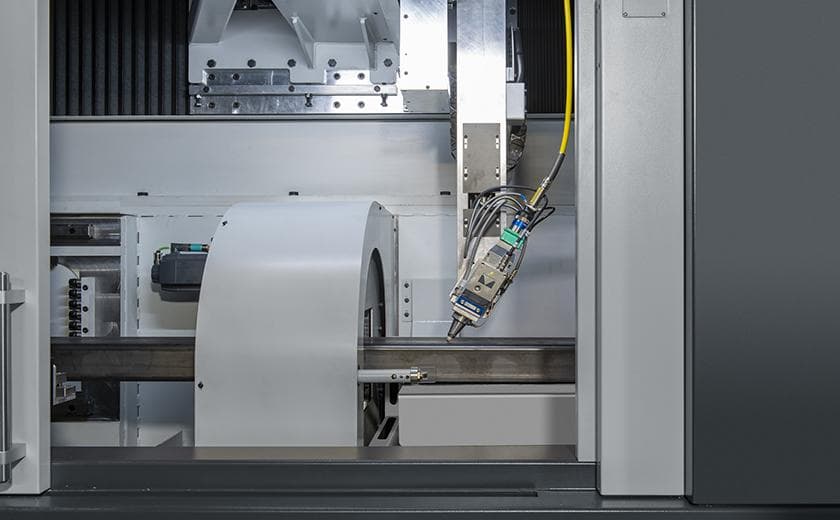

- High-performance cutting head with NC-Focus and bevel function +/- 45 degrees
- Magazine style 6-position automatic tube load system
- Leading edge detection for variable tube lengths
- Automatic bow detection and compensation system
- Automatic twist compensation system
- Outfeed tube support with accompanying conveyor table
- Siemens CNC control is PC-based with touchscreen
- 4 kW fiber laser source
- 6100 mm outfeed extension
- Part evacuation conveyor
- Automatic weld seam detection
- Automatic bundle feeder
- CADMAN-T programming software
- TL 8525
- 8500 mm maximum tube length
- 20 mm – 250 mm tube diameter range
Gallery

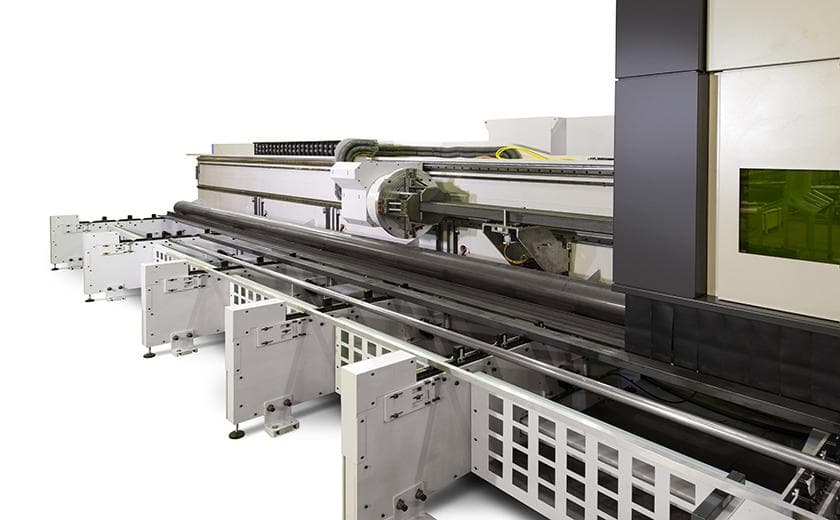

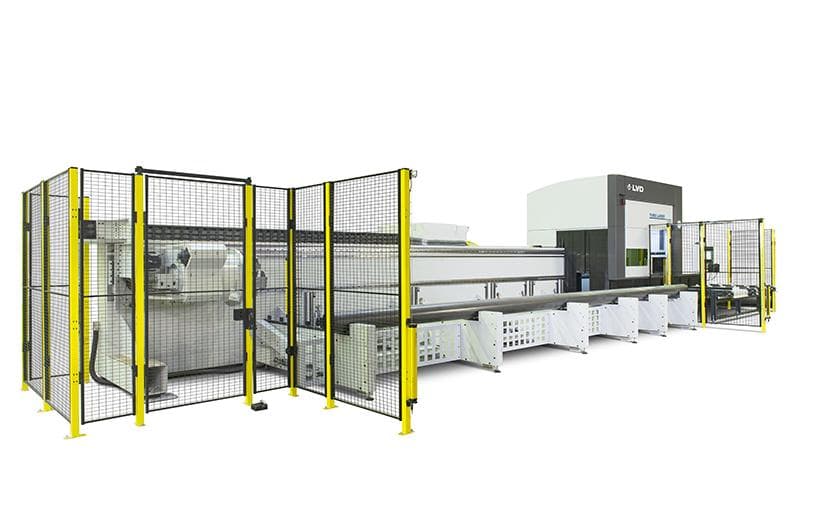

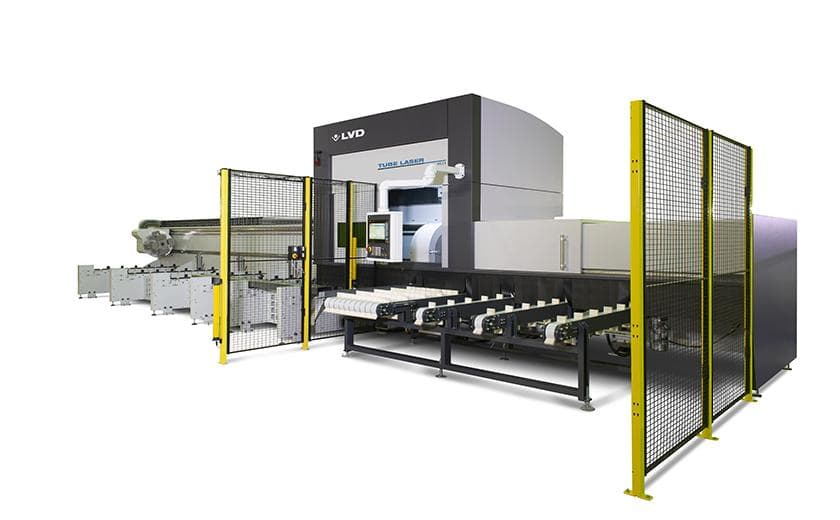

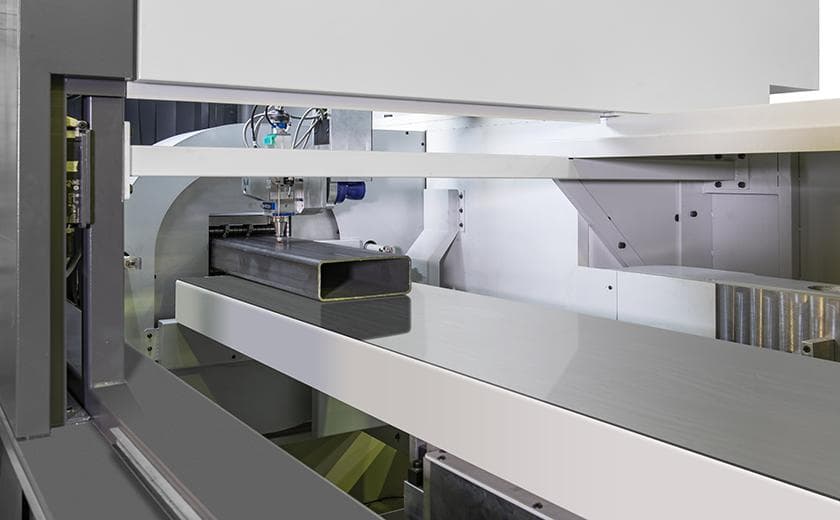

A closer look
