MVS Shears

MVS Shears

Accurate shearing with touch screen ease

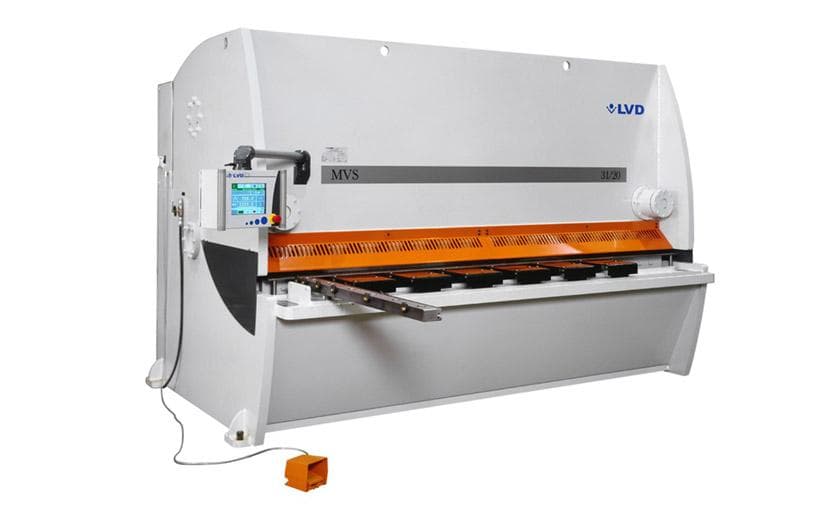

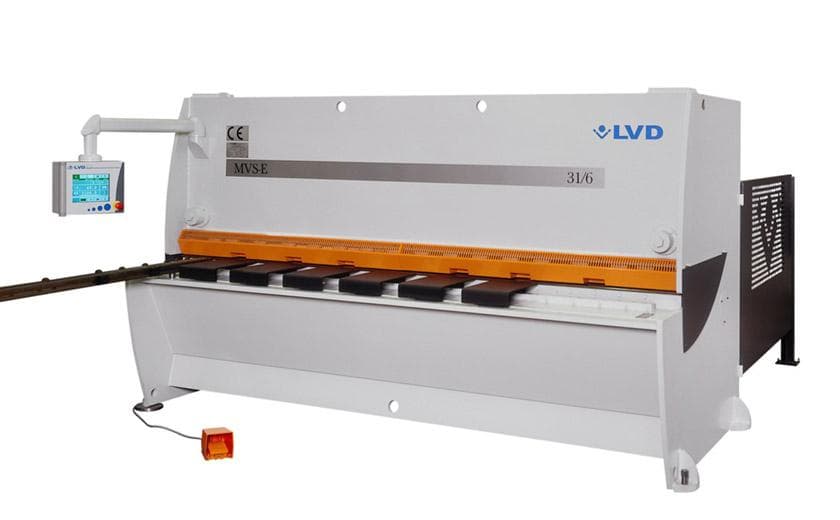

MVS Series hydraulic shears are built to be productive. Able to cut a range of material types and tensile strengths, their flexibility suits virtually all shearing needs. A heavy-duty frame minimizes deflection for accurate cut quality and long production life. The ease of touch screen programming makes start-up and operation fast and simple – train an operator in just 10 minutes.

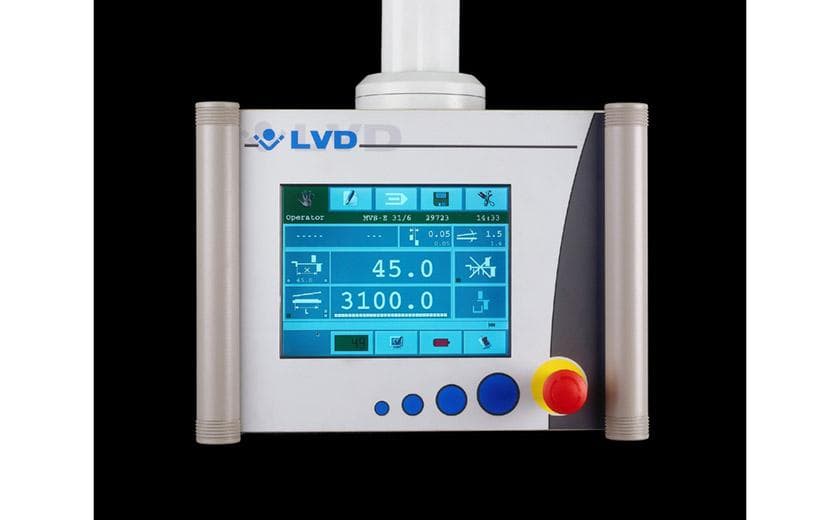

  • Intuitive touch screen control
  • Touch-and-Go backgauge system
  • Push-button adjustable stroke length, blade gap and rake angle optimize cutting

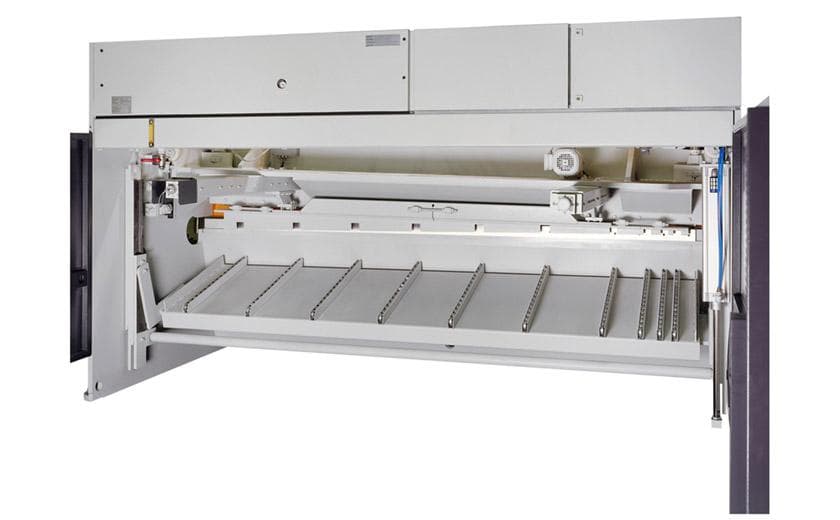

  • Ball transfer system simplifies material processing
  • Large throat gap permits overlap cutting
  • Swing-away backgauge for cutting larger workpieces
  • Sheet support system(offered on certain models)
  • Front sheet supports
  • From 6mm x 3.1 metres up to 13mm x 6.2 metres
  • Hydraulic shearing system with up to four cutting edges
  • Maximum shearing capacity: mild steel 45 kg/mm from 6,35 mm to 13 mm, depending on model; stainless steel 60 kg/mm from 4 mm to 10 mm, depending on model
  • Cutting length: from 3100 mm or 6200 mm, depending on model

Expert Advice and Servicing

Our experience in the sheet metal manufacturing and engineering business stretches back to the 1960s. This means you receive expert advice and service from engineers who understand your business. GWB Machine Tools is Australia’s sole distributor for LVD quality machinery, Lissmac handling and processing machines, MSS nitrogen generators and Kohler leveling machines.
