Easy-Form
The ultimate bending machine

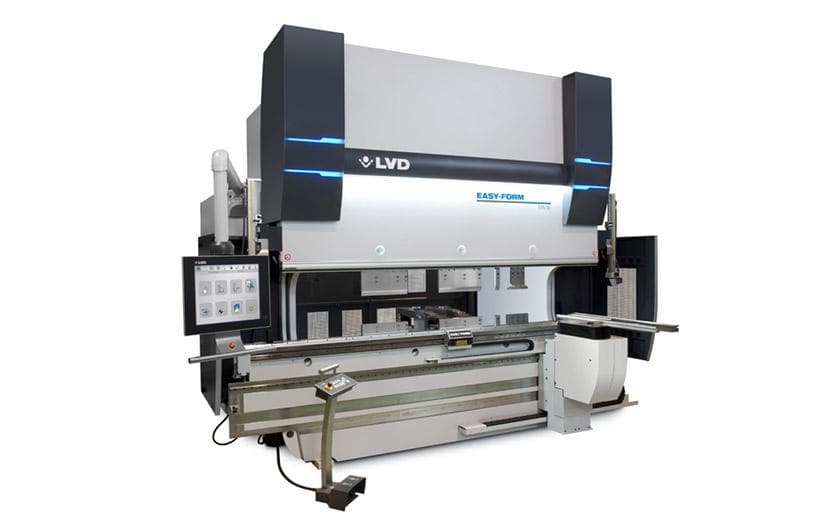

The Easy-Form precision press brake delivers top-of-the-line performance – high accuracy and productivity. This ultimate bending machine, based on the PPEB Series design, is enhanced with LVD’s patented Easy-Form® in-process angle monitoring system. Easy-Form monitors the angle of the bend in real time and provides instant feedback to the TOUCH-B control so that each part is formed to the correct angle from the very first bend.
- Key Features
- Options
- Models
- Specifications
- Resources

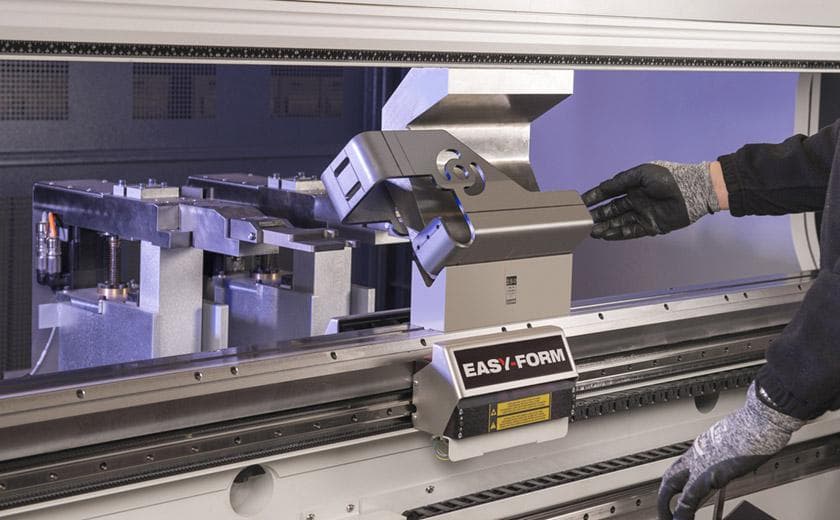

- Patented Easy-Form® in process angle monitoring system

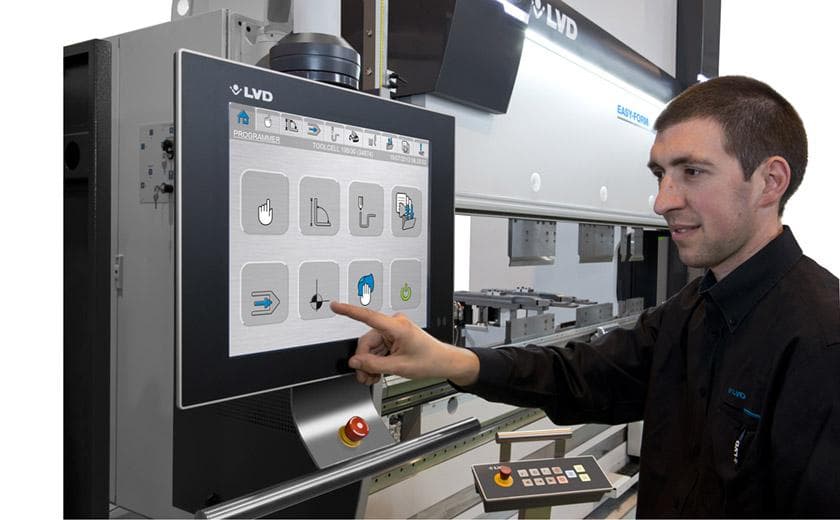

- TOUCH-B touch screen graphical user interface control is intuitive and simple to use
- Bending parameters automatically controlled by LVD’s unique ‘intelligent’ learning database
- 2D & 3D color graphics simulate part creation and display material handling sequencing
- CNC crowning V-axis standard for models over 2 meters
- Press brakes up to 400 ton/4 meter are designed and built using a welded one-piece frame for machine precision
- Enhanced Energy Reduction System (ERS)
- Turbo hydraulics (standard on 220-ton model and higher)
- CADMAN-B programming software
- Configurable options at point of order: open height, stroke, throat and gap, and more
- Six-axis modular backgauge
- US style, vertical W-style or LVD style (European style with adapter)
- Turbo hydraulics
- CNC sheet followers
- Easy-Form-series – 9 axis: 80 ton x. 1.5 metre up to 640 ton x 8 metre
- Capacities from 80 tons to 640 tons
- Bending length from 1.5 meters up to 8 meters
- Bend accuracy to +/- 0.3 degrees
Expert Advice and Servicing
Our experience in the sheet metal manufacturing and engineering business stretches back to the 1960s. This means you receive expert advice and service from engineers who understand your business. GWB Machine Tools is Australia’s sole distributor for LVD quality machinery, Lissmac handling and processing machines, MSS nitrogen generators and Kohler leveling machines.
