Overview
Turret punch press and laser combined

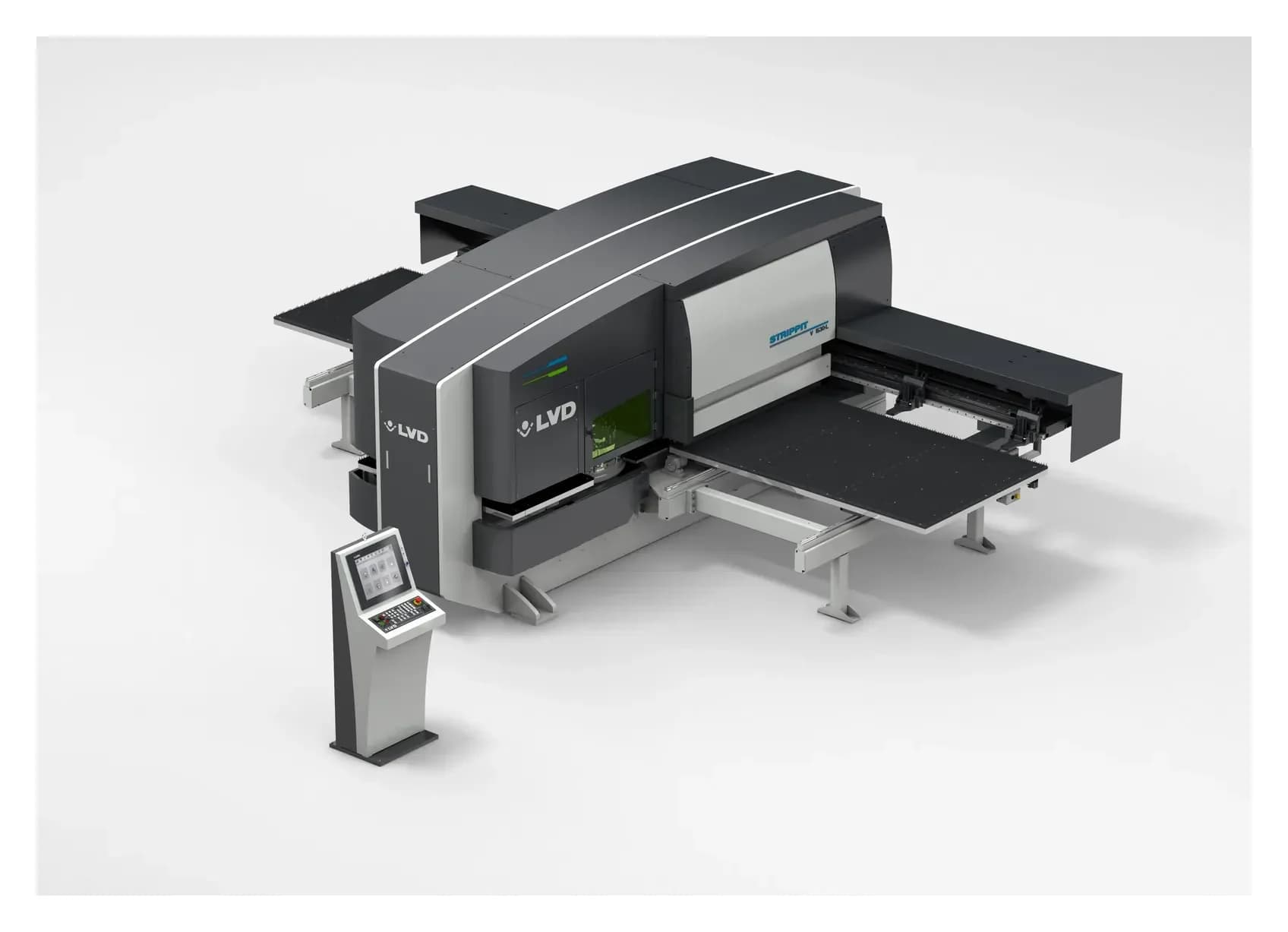

V-L is the heavy end of the punch-laser range: a 30-ton thick-turret press on a heavy-duty bridge frame, paired with a 4-kW fibre laser. Forty-eight thick-turret stations — four of them 88.9 mm auto-index — carry enough tooling that most jobs run without a tool change, and Smart Stroke ram control tunes the press stroke to the operation rather than the machine.
- Thick-turret 30-ton hydraulic punch press on a heavy-duty bridge frame
- 4-kW fibre laser source for cutting and etching
- 48 thick-turret tooling stations with four 88.9 mm auto-index stations
- Hardened turret sleeves for accurate alignment
- Smart Stroke® ram control
- Full-sheet processing without repositioning
- Intuitive Touch-PL control interface
- CADMAN-PL integrated programming software
- Industry 4.0 compatible
- Punching capacity: 300 kN (30 tons)
- Maximum material thickness, punching: 6.35 mm
- Punching accuracy: 0.1 mm
- Repetitive accuracy: 0.05 mm
- Maximum hit rate: 910 HPM at 1 mm pitch, 440 HPM at 25.4 mm pitch
- Sheet format: 3050 x 1550 mm
- Turret stations: 48 (thick configuration)
- Tool change time: 0.9 – 2.1 seconds
- Combined X-Y positioning speed: 128 m/min
- Controller: Touch-PL
- Average power consumption: 14.3 kW (0.9 kW standby)
- Modular automation — Compact Autoload, Bin-sort, Compact Tower, Tower Automation, Warehouse Automation
- Robotic interface integration
- Brush table with roller balls
- Scrap conveyors
- Sheet lubrication system
