Affordable combination technology
QX-L brings punching, forming and fibre laser cutting together in a mid-range machine sized for shops that want combination technology without a full turret system. A single-head 20-ton press with twenty direct-drive, fully indexable stations handles the punched and formed work; a 4-kW fibre laser with auto-focus head takes the contours. Programmable clamps and full-sheet processing mean the whole 3050 x 1525 mm sheet is usable without repositioning.
- Single-head 20-ton punch press with 20 direct-drive, 360-degree indexable tool stations
- 4-kW fibre laser with auto-focus cutting head
- Fully programmable ram control system
- Full-sheet processing of a 3050 x 1525 mm sheet

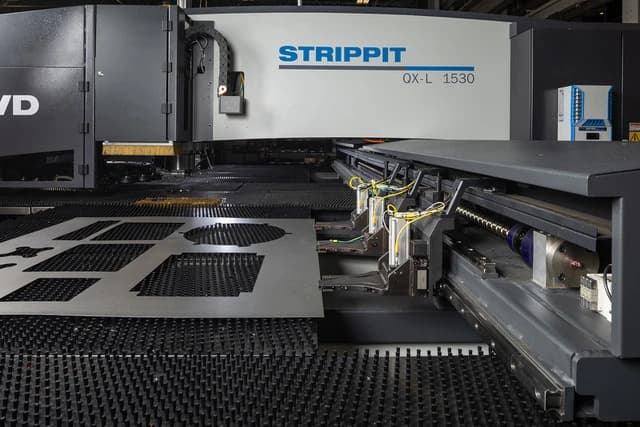

- Programmable “smart” clamps for 100% sheet utilisation
- Forming to 75 mm height — countersinks, tabs, knockouts, louvers and continuous embosses
- Programmable work chute (474 x 525 mm) for part removal
- Energy Reduction System (ERS)
- Touch-PL control and CADMAN-PL programming software
- Maximum sheet size: 3050 x 1525 mm
- Sheet thickness: 0.5 to 3 mm
- Maximum sheet weight (100%): 70 kg
- Tonnage: 20 metric (single punch head, T-style)

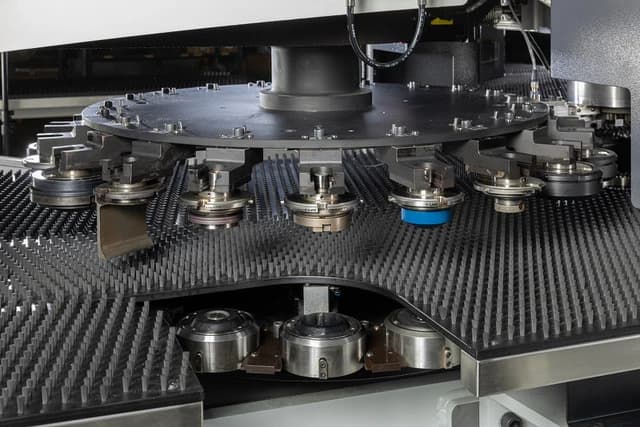

- Tool stations: 20 pockets, up to 200 tools

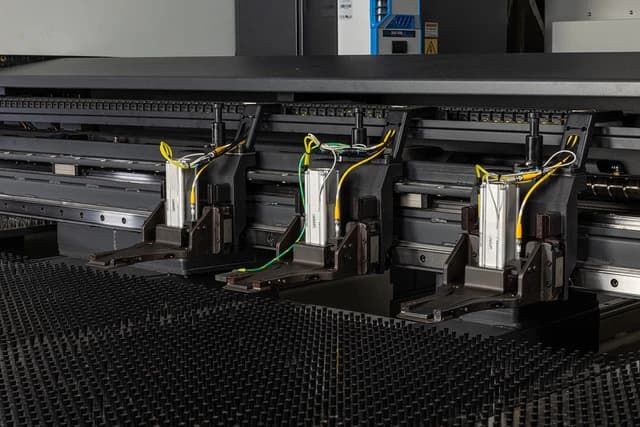

- Work clamps: 3, programmable
- Tool change time: 3 to 7 seconds
- Auto-index top speed: 120 rpm
- Combined axis traverse speed: 110 m/min
- Maximum hit rate: 900 HPM at 1 mm centres, 425 HPM at 25 mm centres
- Laser power: 4 kW
- Tool diameter capacity: up to 90 mm

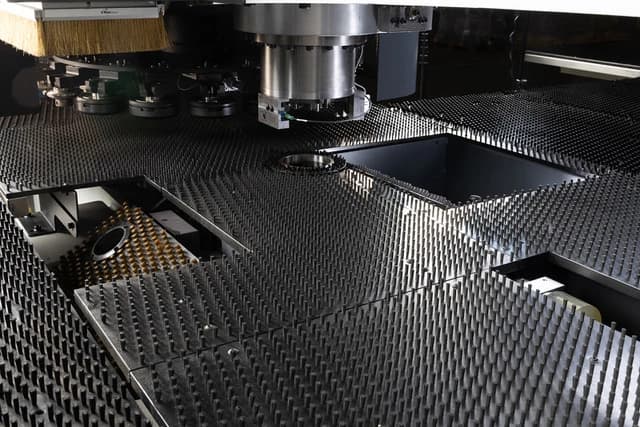

- Punching drop door: 474 x 525 mm

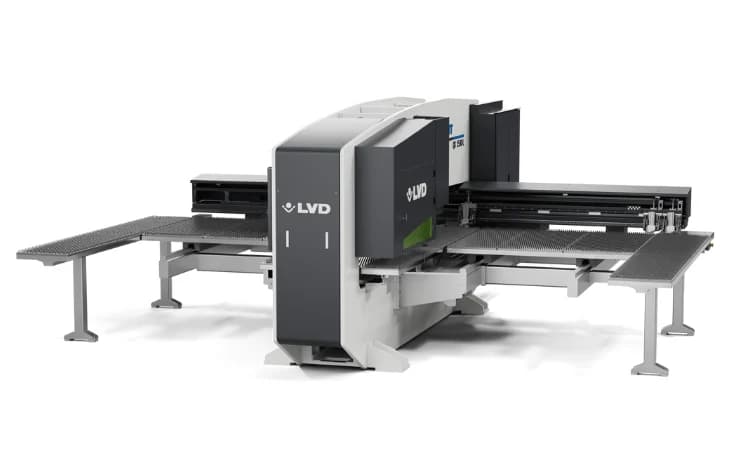

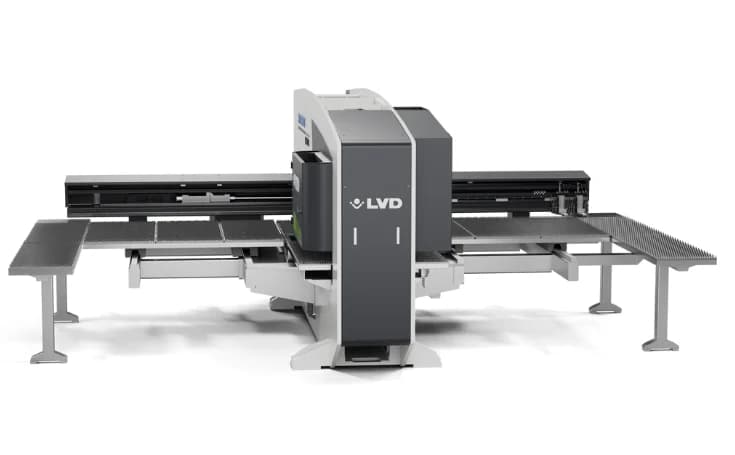

- Modular automation — Compact Autoload, Bin-sort, Compact Tower, Tower Automation, Warehouse Automation
- Laser drop door (292 x 525 mm)
- Scrap conveyors
- Cooling systems
- Spot lubrication system for forms
