Strippit PX
Punch, bend, tap and form on a single machine
Overview
Punch, bend, tap and form on a single machine

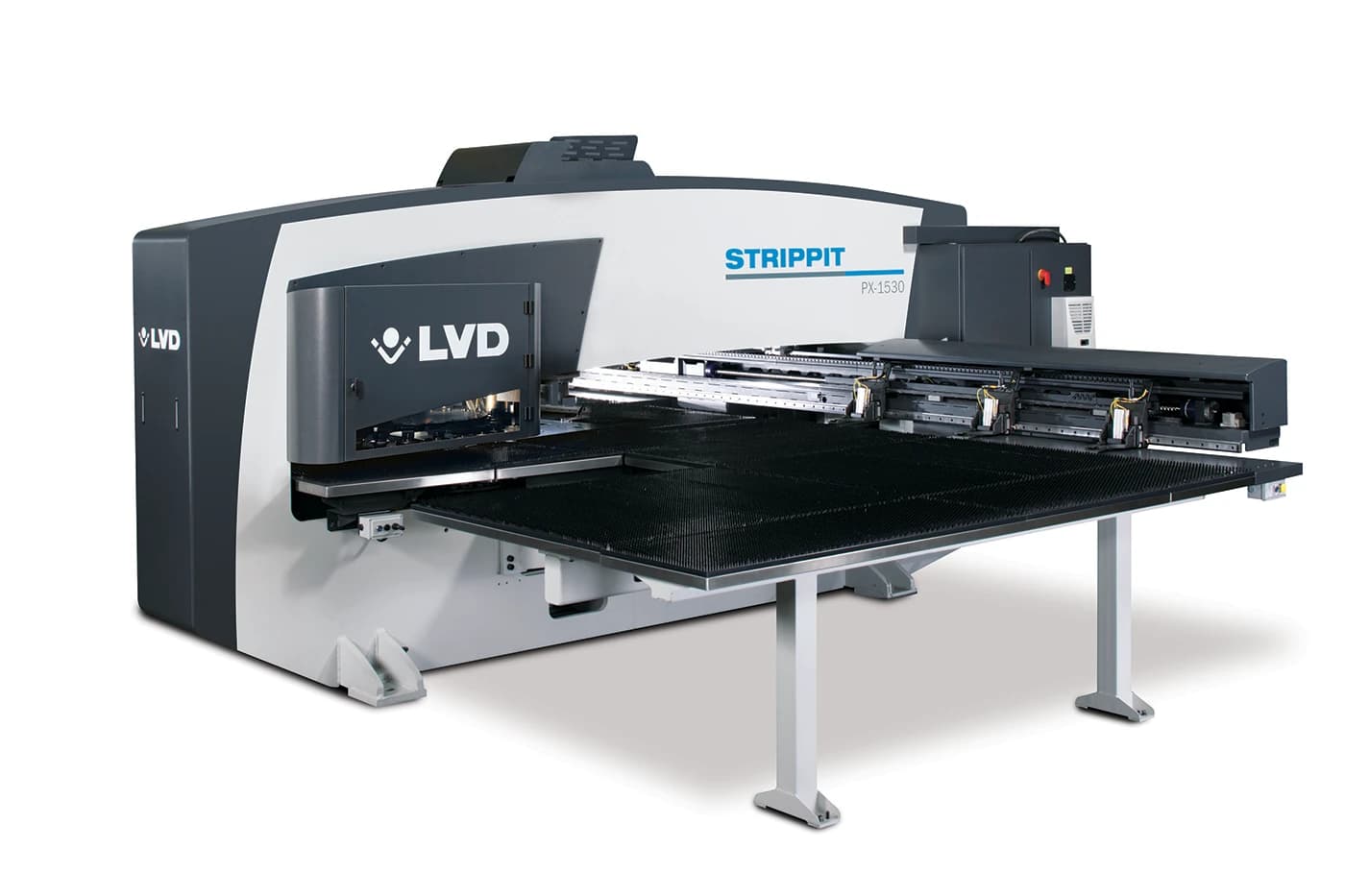

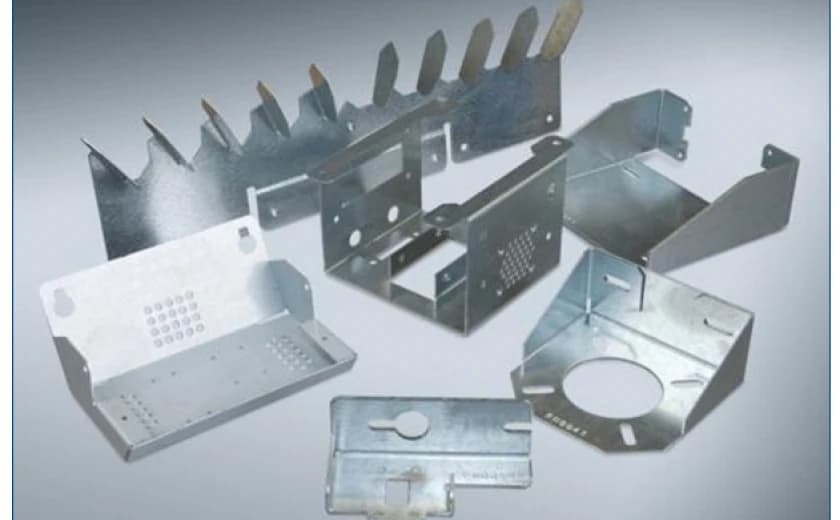

Punch, bend, tap and form all on a single machine. The PX-Series punch press offers the ultimate in flexible production to handle even complex, three-dimensional parts. Its tool changer design features all-tool rotation – each tool is able to rotate a full 360 degrees. With a capacity of up to 200 tools, the ability to use any tool at any angle anywhere on the sheet, and the ability to form flanges up to 75 mm high, the PX-Series machine offers complete versatility.

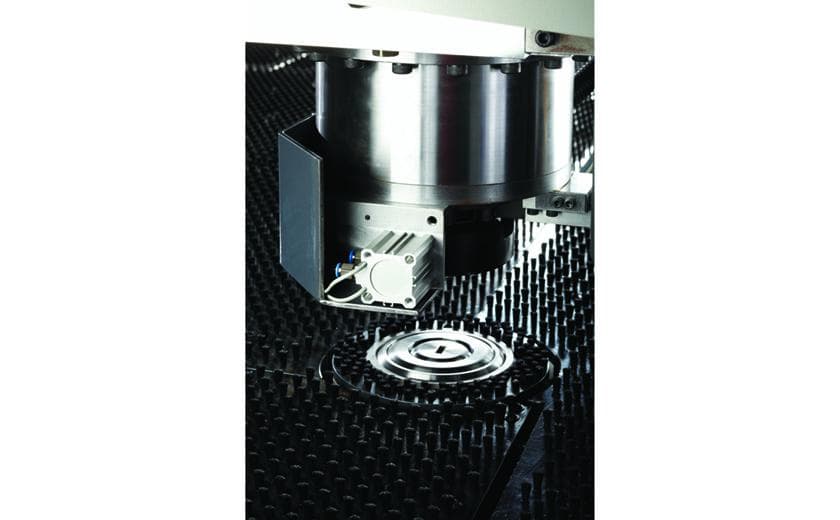

- Single punch head system with retractable die and all tool rotation design

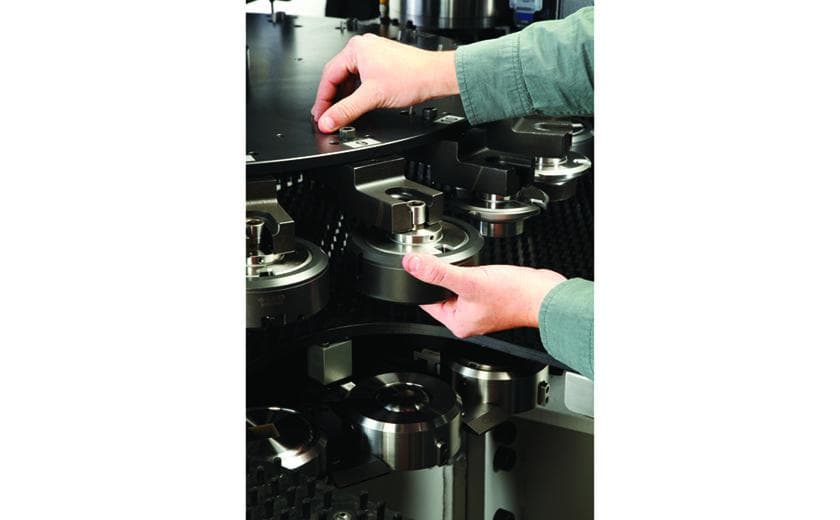

- 20 indexable tool stations
- Accepts 5- or 10-station indexable multi-tool
- T-style tooling compatible
- Three fully programmable and re-locatable work clamps
- Energy Reduction System minimizes power consumption
- Smart Clamp ensures the smallest possible no-punch zones
- Smart Stroke automatically optimizes ram stroke
- Programmable parts removal chute
- Integrated TOUCH-P control is intuitive and simple to use
- CADMAN-P programming software

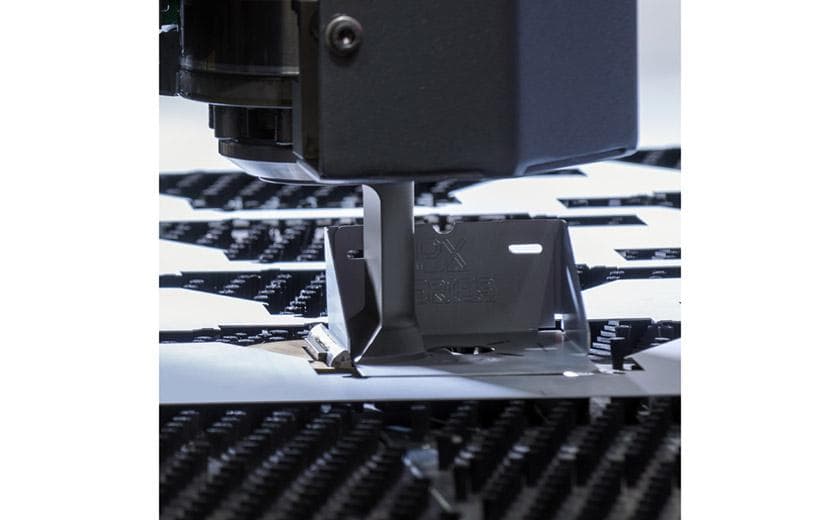

- Opti-Bend tool system
- Tap tool system
- Automatic load/unload system
- Flexible automation (FA-P)
- Compact Tower (CT-P)
- PX-1225 (20 ton – 49.21″ x 98.4″ [1250 x 2500 mm])
- PX-1530 (20 ton – 60″ x 120″ [1525 x 3050 mm])
- Maximum material thickness: 1/4″ (6,35 mm)
- Maximum hit rate: up to 505 HPM on 0.984″ (25 mm) centers
- Maximum hit rate: < 1000 HPM on 0.04″ (1 mm) centers
