LVD Laser Punching
Strippit PX-L
Single-head punch and laser combination
Overview
Single-head punch and laser combination

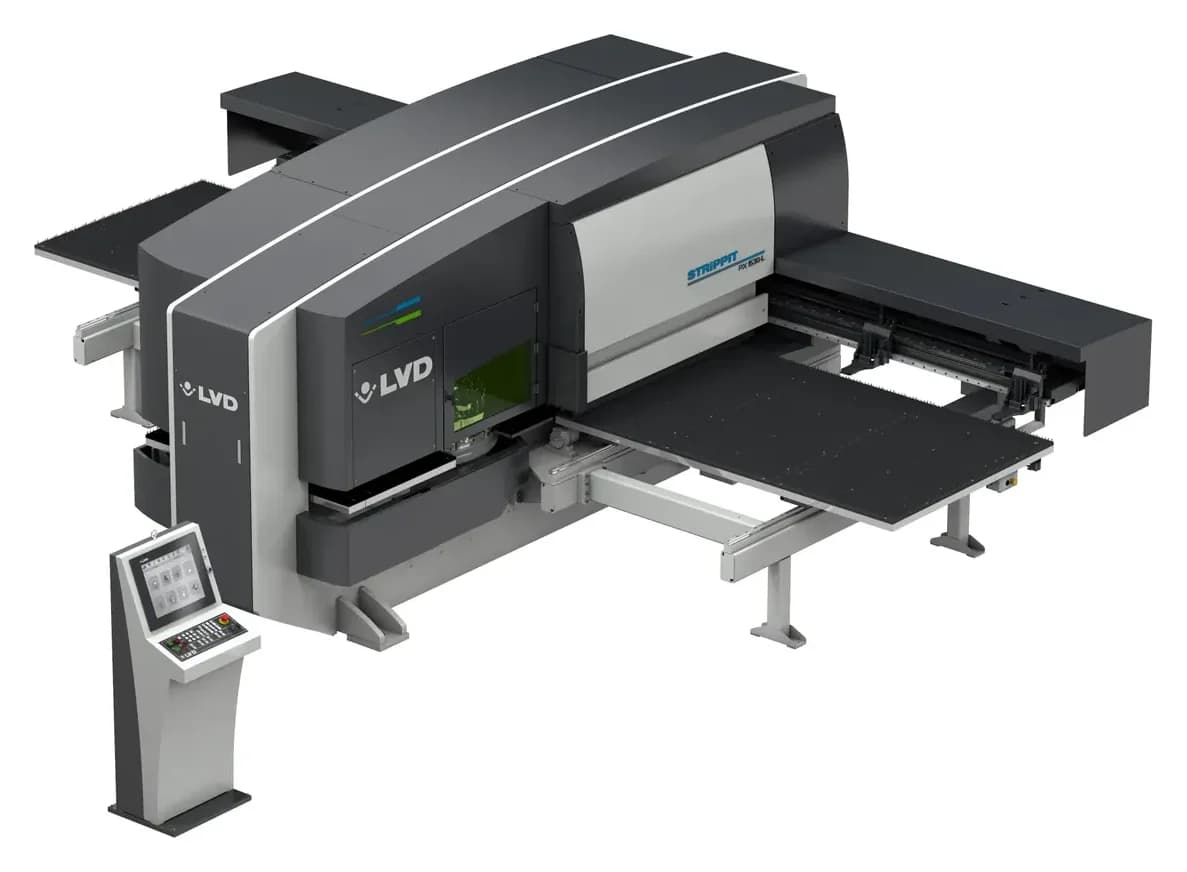

PX-L puts a single-head 20-ton press and a 4-kW fibre laser over the same sheet, so a part can be punched, formed, tapped and laser-cut in one setup. Twenty direct-drive indexable stations carry tooling to 90 mm, the retractable die keeps formed work scratch-free, and programmable ram cycle profiles let the press be tuned per operation rather than per machine.
- Single-head punch press with 20 direct-drive indexable tool stations (to 90 mm diameter)
- 4-kW fibre laser source
- Full-sheet processing without repositioning
- Programmable ram cycle profiles for punching, forming and tapping
- Retractable die ensures scratch-free punching and forming
- Intuitive Touch-PL control interface
- CADMAN-PL programming software
- Industry 4.0 compatible
- Maximum punching capacity: 200 kN
- Maximum material thickness: 6.35 mm
- Punching accuracy: 0.1 mm
- Repetitive accuracy: 0.05 mm
- Maximum hit rate: 910 HPM at 1 mm pitch, 440 HPM at 25.4 mm pitch
- Marking rate: 1750 HPM
- Forming heights: up to 75 mm
- Sheet format: 3050 x 1550 mm
- Tool magazine: 20 stations (T-style), auto-index to 90 mm
- Combined X-Y positioning speed: 130 m/min
- Controller: Touch-PL
- Average power consumption: 14.3 kW (0.9 kW standby)
- Automation systems — Compact Tower, Flexible Automation
- Brush tables
- Scrap conveyors
- Lubrication systems
