Overview
XXL Laser Cutting

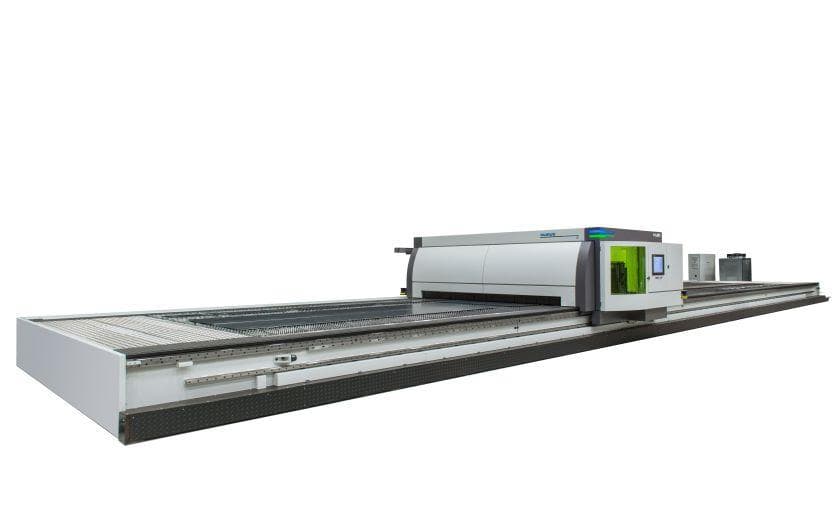

Taurus is a large-format gantry-style fiber laser machine engineered for extra-large cutting capacity. A unique modular design, the machine size begins at a 10-meter bed length and can be expanded in increments of 4 meters to a maximum bed length of 42 meters. Taurus accommodates workpieces up to 3.3 meters wide. An optional bevel head provides 2.5D cutting up to 50 degrees.
- Modular design (10 to 42 m) for extra-large or multiple sheets
- Efficient cutting and nesting of a diversity of ferrous and non-ferrous parts
- State-of-the-art cutting head features NC focus and zoom optics
- Engineered for high dynamics in large-format cutting
- “On the fly” piercing and cutting
- Cut parts on one section of table while loading/unloading on another for minimal downtime
- Convenient and secure access to entire working area for maintenance and part evacuation
- Built-in features enhance safety: multiple Lazer Safe curtains, scanners, interlock mechanisms

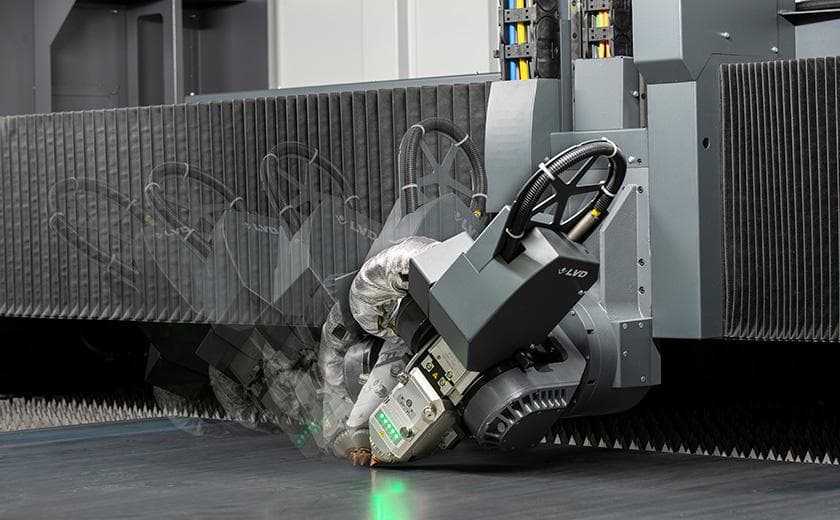

- Advanced bevel cutting head – 2.5 cutting up to 50 degrees
- 30-pocket automatic nozzle changer
- CADMAN-L programming software
- Taurus
- 12, 20 or 30kW laser power
- Machine bed length: 10 – 42 meters, modular in increments of 4 m
- Sheet width: 3200 mm straight cutting; 2600 mm bevel cutting
- Axis speed: X/Y simultaneous 100 m/min, Z = 50 m/min
