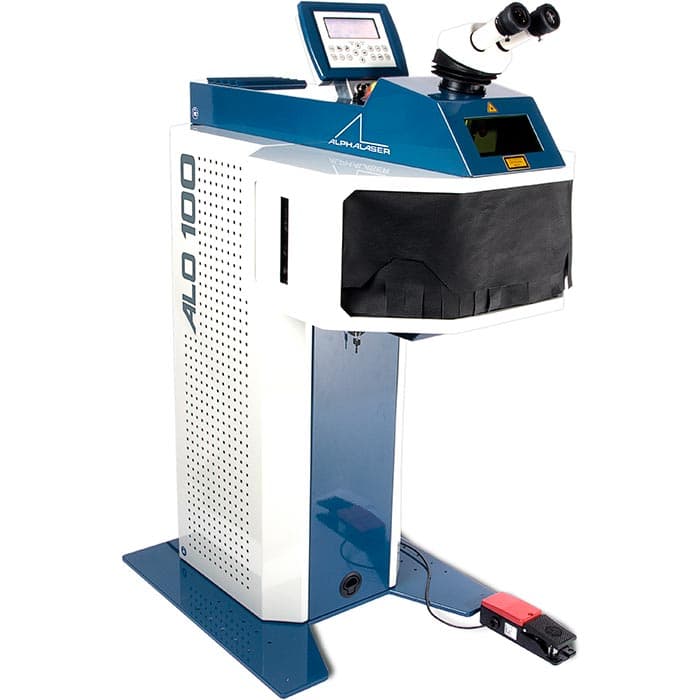

ALO Laser Welder

ALO – Manual Laser Welder

The ALO Laser Welder is a compact, ergonomic system designed for precise manual welding and polishing of small components. With multiple laser-safe access points, excellent operator comfort, and optional micro-welding and rotary axis accessories, it is ideal for industries such as sensor manufacturing, jewellery, dental laboratories, and fine component production.

Features

T-slot chamber for fast loading of long components like cables and sensors.

ALO 100 — 100 W output, 25 Hz pulse frequency.

• Flexible loading options — laser-safe side slots for long parts, bottom access for special components, and a large front opening for easy loading.
• Laser-proof leather curtain ensures Class 1 safety in any work environment.
• Comfort-focused design — ergonomic armrest for fatigue-free manual welding.
• Optional accessories — cooling connection, micro-welding device, rotation axis for cylindrical parts.
• ALO 120 Micro model adds: T-slot chamber for fast loading of long components like cables and sensors.
• Micromanipulator (optional) for micrometer-precise positioning.
• Pneumatic rotary axis control integrated.
• LED beam deflection lighting for a clear view of the workspace.
• Lens with focus adjustment for quick and accurate focusing.
• Power options: ALO 100 — 100 W output, 25 Hz pulse frequency.
• ALO 120 — 120 W output, 50 Hz pulse frequency, also suitable for laser polishing.

Why the ALO Stands Out

The working chamber can be loaded via various, laser-safe openings: Through lateral slots you can position longer components in the processing room and then weld them in a laser-safe manner. Another passage at the bottom of the working chamber also allows loading from below. At the front, a large opening ensures easy access to the spacious welding chamber. The laser-proof leather curtain offers laser protection so that the ALO can be safely placed in any work environment.

The armrest is extremely comfortable – thus ensuring relaxed work. Again, much attention has been paid to a good ergonomics.

The manual welding laser can be equipped with a cooling connection and a micro welding device. A rotation axis can also be operated with the laser.

In the ALO 120 micro, the working chamber also has a t-slot for the fast inserting of long components, such as cables and sensors. A micromanipulator* ensures the micrometer-accurate positioning of the components and the control for the pneumatic rotary axis* is already integrated. The LED beam deflection unit provides a good illumination of the work area and the lens with focus adjustment a comfortable and fast setting of the correct focus position. *(option)

With the ALO 100 you have 100 W output power and 25 Hz pulse frequency available and with the ALO 120 even 120 W and 50 Hz, so you can use this model additionally for laser polishing.

Manufacturers of sensors and micro components, for goldsmiths and dental laboratories and for anyone who wants to weld and polish small components manually quickly and easily.

• Compact and versatile — fits easily into workshops while offering advanced features for micro welding and polishing.
• Precision-ready — optional micromanipulator and rotary axis enable high-accuracy handling of delicate components.
• Safe in any environment — multiple laser-safe openings and protective curtain design ensure Class 1 compliance.
• Ergonomic operation — comfortable armrest and intuitive controls support long welding sessions.
• Application-focused — ideally suited for manufacturers of sensors, micro components, goldsmiths, dental labs, and others needing fine manual welding.
