AL Flak MAX

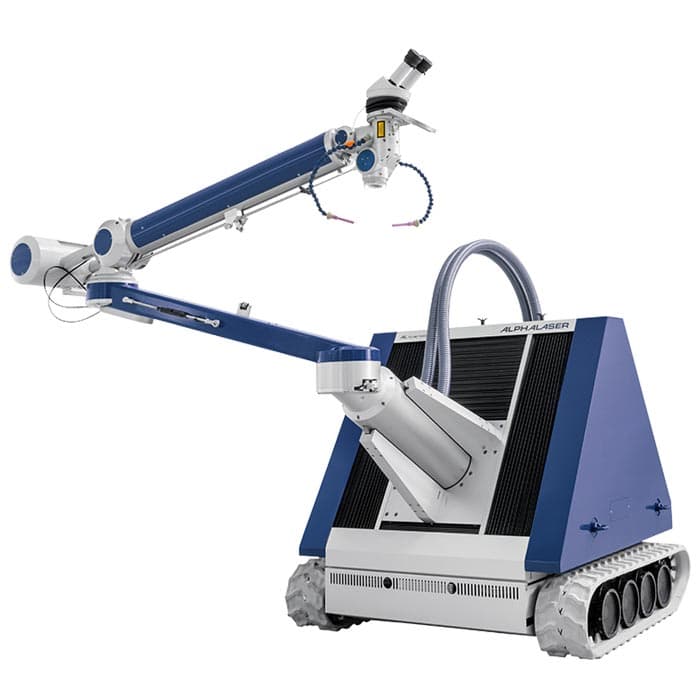

ALFlak MAX – Mobile Welding Laser

The ALFlak MAX is designed for the repair and overhaul of large molds and pressing tools where conventional laser systems cannot reach. With its highly movable arm extending up to 2.8 m and a wide range of motion, it delivers precise laser welding even in the most hard-to-access areas. Available with either caterpillar tracks for mobility or a pallet-truck-ready substructure, the ALFlak MAX is a flexible, high-performance solution for industrial repair work.

Features

• Highly movable arm with reach of up to 2.8 m.
• Extended working range — maximum working height of 2 m, depth of 80 cm.
• Flexible laser head with left/right rotation, optional turn-and-tilt objective, and multiple focal length lenses for maximum accessibility.
• Laser power up to 300 W for fast, consistent, and homogeneous welding results.
• Two mobility options — caterpillar track system for convenient movement and positioning, or pallet truck substructure for easy transport.
• Designed for industrial repairs, especially for large molds, pressing tools, and heavy machine components.

Why the ALFlak MAX Stands Out

Overhauling large molds requires special solutions. The most common laser systems can usually not reach inside the mold. This is where the ALFlak MAX shines. The highly movable arm of this mobile welding laser can be extended to 2.8 m. The highest working point is 2 m and the deepest is 80 cm. This means even hard-to-reach areas can be accessed.

A laser head which can be rotated left and right, the optional turn and tilt objective, and focusing lenses with various focal distances ensure that the laser beam can reach (almost) any point of the work-piece without requiring arduous movements.

With laser power up to 300 W, homogeneous welding results are quickly achieved.

The system is available in two variants: Either with a caterpillar track for convenient moving and positioning, or with a substructure for pallet truck transport.

We recommend the ALFlak MAX for quick repairs on pressing tools, large molds, and machine components.

• Unmatched accessibility — Reaches deep or elevated areas that are impossible with most welding lasers.
• Versatile setup — Rotating and tilting optics combined with lens options allow precise positioning of the laser beam.
• High-performance welding — 300 W output ensures reliable, strong welds in minimal time.
• Mobile and adaptable — Choose between tracked movement or pallet-ready transport to suit your workshop needs.
• Purpose-built for mold repair — Optimised for fast, efficient maintenance of large, high-value components.
