MG 3 Roll Section Bending Machine

Overview

MG 3 Roll Section Bending Machine

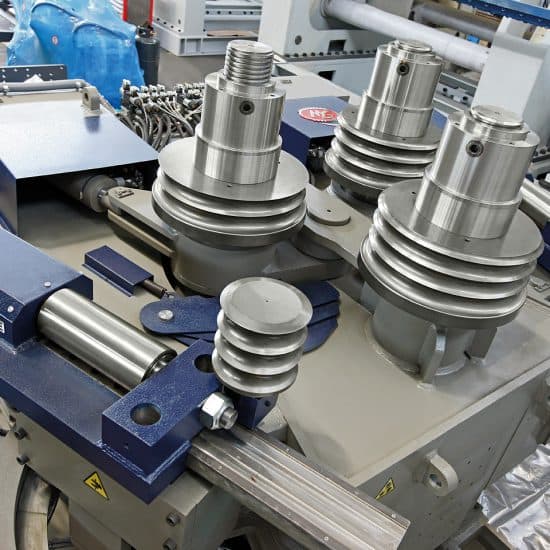

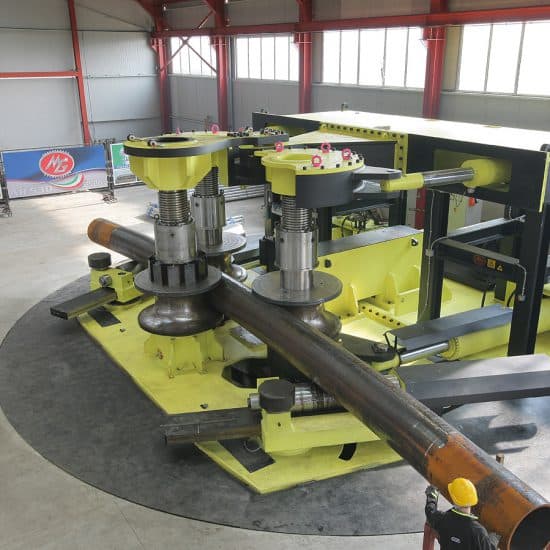

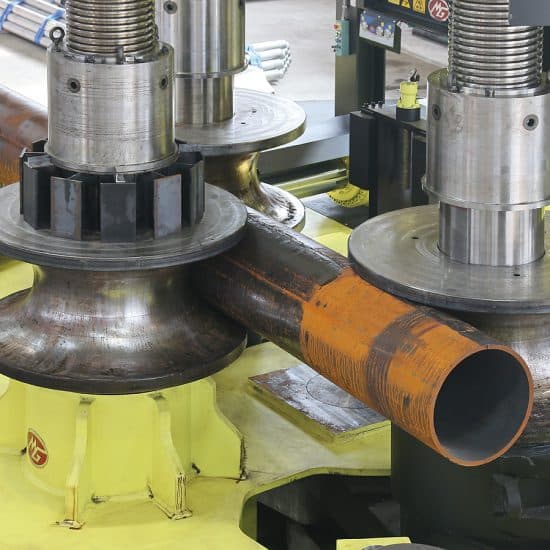

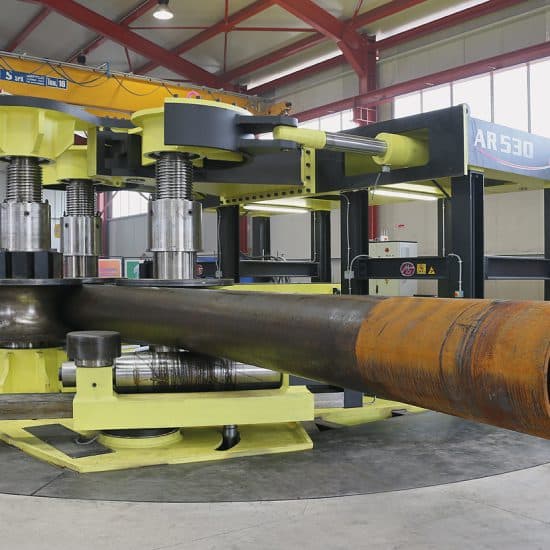

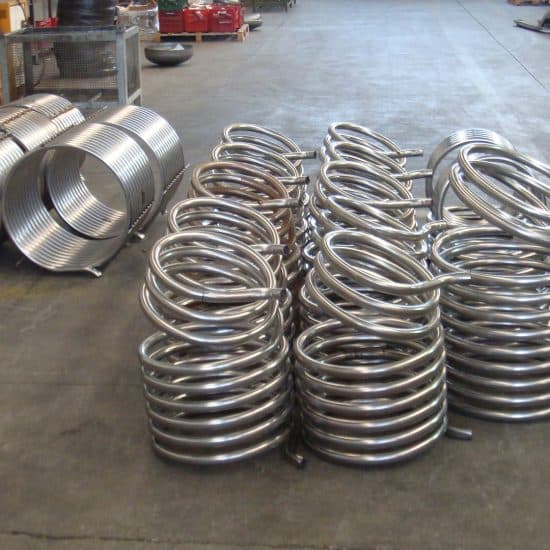

These machines are designed for high-capacity, precision bending of all types of profiles and tubes, offering competitive performance for a wide range of applications. The forming rolls feature planetary movement to minimise flat sections, while each roll is driven by an independent hydraulic motor with a directly coupled planetary gearbox, ensuring maximum torque transmission and consistent bending results. Optional tooling, such as nylon inserts for aluminium profiles, and three-dimensional hydraulic side guides, provide additional support and control during bending, protecting sensitive materials and maintaining precision. These machines can operate in both vertical and horizontal orientations, adapting to diverse production needs. CNC automation is available, enabling precise control over both standard and complex profiles in mild steel, stainless steel, aluminium, bronze, copper, and other alloys. For spiral pipe production, specialised models feature reinforced motorisation for increased power, shorter shafts, stronger side guides for improved push and pitch control, and calibration rolls to ensure consistent accuracy. Front supports with multi-directional movement provide operators with complete control over the bending process. In advanced linear guide models, the side rollers move along a rectilinear axis, reducing the distance between rollers. This allows the pinching point to occur in a shorter space, enabling the machine to bend smaller diameters with exceptional precision and stability. The minimal straight section at the end of the profile produces optimal results across all geometries.
