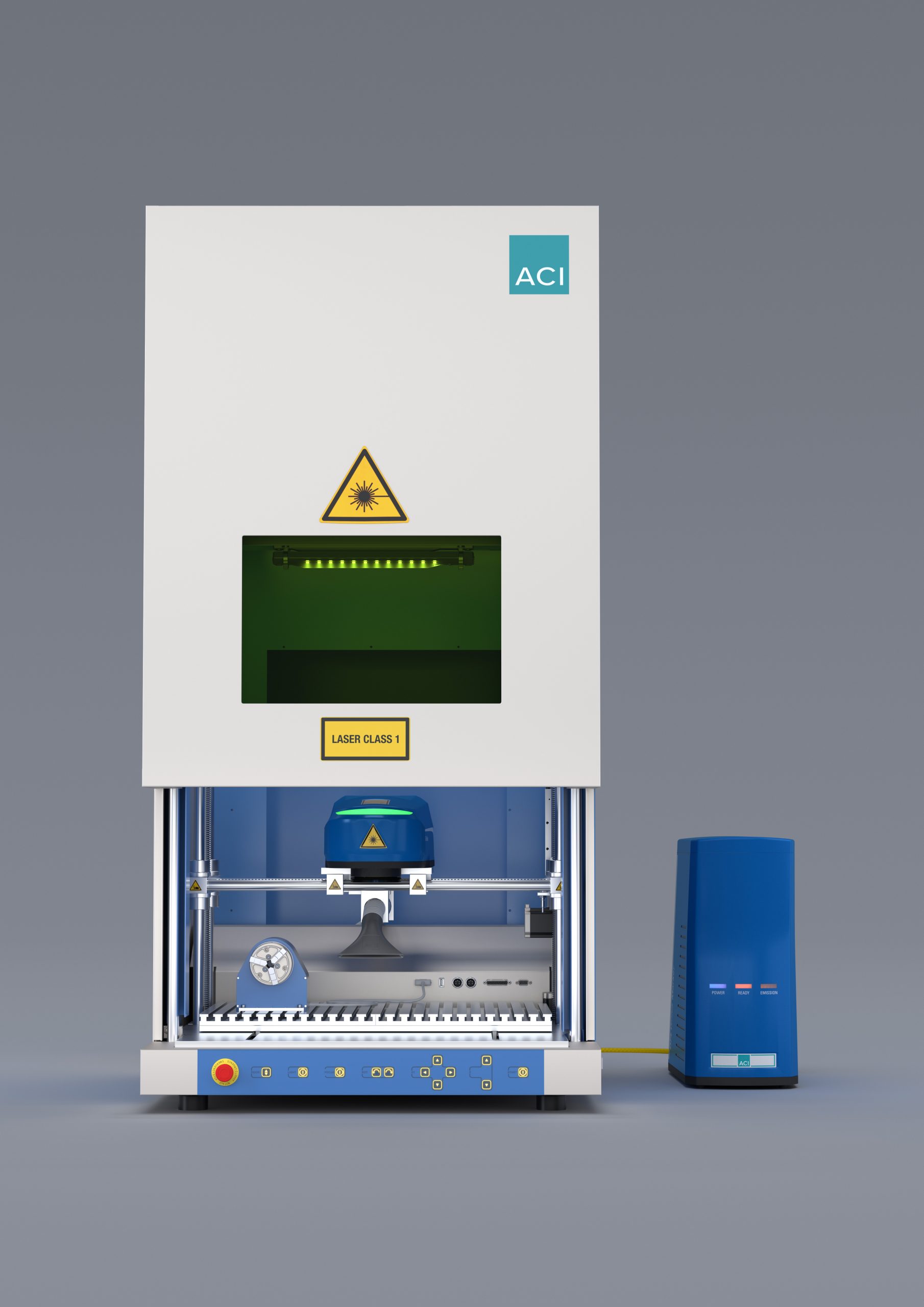

The Workstation Professional is a versatile Class 1 laser marking station compatible with all ACI laser systems. Built to handle metals, plastics, ceramics, films, and glass, it is designed for both large-scale production and the marking of heavy components. With a spacious interior, robust build, and advanced motion control, it is the ideal solution for companies requiring precision, safety, and flexibility.
Class 1 laser safety enclosure — no additional safety devices required.
Large T-slot table (600 × 600 mm), capable of supporting workpieces up to 100 kg.
Z-axis portal with 400 mm travel for marking large and tall workpieces.
Focus finder simplifies alignment for accurate Z-axis positioning.
Optional X and Y axis tables, expanding the marking area to 350 × 510 mm, enabling palletized batch marking.
Supports marking of both large individual components and multiple smaller parts in one operation.
Wide range of accessory integration: rotation axes, film handling systems, type plate handling, and XL packages for extended workspace.
Easy-access interior for convenient loading and setup.
Fully customisable to meet specific customer requirements.
Properties
The Workstation Professional can be combined with any ACI laser system. This means that it is suitable for working with materials such as metals, plastics, ceramics, films and glass. Typically, this system is used for large-scale production as well as large and heavy components.
It is a laser safety class 1 solution and therefore does not require any additional safety devices. This makes the Workstation Professional an attractive alternative to conventional marking technologies, even for small companies.
The capacious interior is easy to access and has a large T-slot table. This table has a mounting surface of 600 x 600 mm and can be loaded with parts up to a weight of 100 kg. A Z-axis portal enables the laser to travel 400 mm along the Z-axis, which is perfect for large and heavy workpieces. A focus finder helps to find the correct Z-axis position in no time at all. The system is also ideal for marking many small parts. An X-axis and an optional Y-axis table increase the total area available for marking to 350 x 510 mm, with the result that even parts in pallets can be marked in a single operation in the Workstation Professional. The laser travels the entire marking area in a single pass.
A comprehensive range of accessories allows a wide variety of marking jobs to be accomplished. For instance, there are axes of rotation for uniform marking around the perimeter of workpieces, film handling systems with winding and unwinding devices for marking film labels, type plate handling systems for the automated marking of type plates, and an XL package that provides even more space for customising your solutions. In addition, the Workstation Professional – like all of ACI’s laser stations – can be customised to fulfil the customer’s specific requirements.
Software
The laser system is controlled using our proprietary Magic Mark marking software. This software enables workpieces to be marked with text, graphics, codes (data matrix codes, barcodes), serial numbers and logos. It can also be used to achieve uniform markings around the perimeter of workpieces with rotational symmetry. An intelligent user privilege management system facilitates the creation of different user groups. This way, the laser system can be adjusted to cater for the user’s specific requirements. When using the laser system in automated production lines, fully automated operation – including data exchange with various data sources – can be achieved without any difficulties. Optionally, plugins such as the code or script module can be used to add extra functions to the Magic Mark software.
Compatible Lasers
COTwo Marker
DPL Lexis Marker
DPL Nobilis Marker
DPL Genesis Marker
DPL Magic Marker
DPL Nexus Marker
DPL Smart Marker
DFL Ventus Marker
DPL Magic Trimmer
DFL Brevis Marker
DFL Ventus Trimmer
Compatible Accessories
Tool reader
AOI
CPM
Software connections
Axis solutions
Laser extraction systems
Laser safety
Magic Mark
AOI plugin
Contour Tool
Data Import plugin
GS1-Generator
OCR Plugin
Ruler Scale plugin
Z Segmentation plugin
Universal compatibility — Works with all ACI laser systems, including fiber, UV, green, and CO₂ lasers.
Safe and compliant — Built as a Class 1 laser station, removing the need for extra safety enclosures.
Handles heavy loads — Accommodates workpieces up to 100 kg, ideal for large and heavy-duty marking tasks.
Large-scale and batch production — Extended travel and optional axis tables allow for palletized and oversized marking jobs.
Adaptable to industry needs — Customisable with rotation axes, film and type plate systems, and software plugins for highly specialised applications.
User-friendly — Magic Mark software with role-based access, automation support, and data integration makes operation simple and production-ready.
