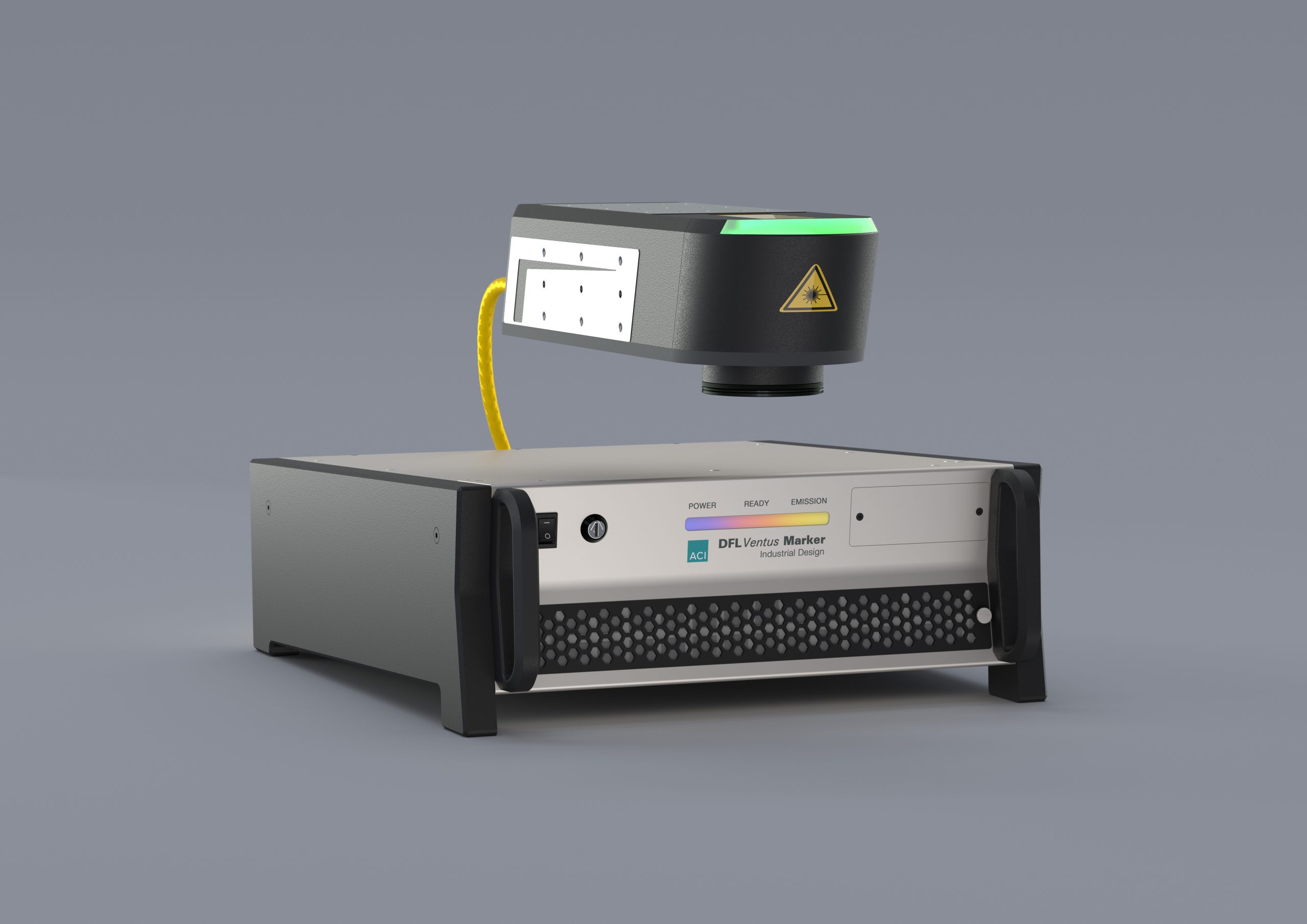

The industrial version of the compact DFL Ventus Marker laser system has been specially designed for use in production lines in industrial environments. Its housing is protected against the ingress of dust and water splashing against it, and the versatility of this housing means that it can be installed with ease wherever needed. With a choice between a 19-inch built-in version and a tabletop version, this laser system is available in a range of power classes and beam qualities, depending on the application. The Business Fibre series offers users a choice of power output levels between 20 and 100 W.
The DFL Ventus Marker Industrial Design is a ruggedized, compact fiber laser marking unit engineered for demanding industrial environments. Designed under the Business Fibre series, it’s built to deliver high-precision, consistent marking under harsh production conditions.
Dust- and water-resistant aluminum housing (IP64) that protects internal components from industrial debris and splash.
Configurable mounting options — available as a 19″ rack-mountable unit or tabletop module for easy integration.
Separable laser head and supply unit, allowing flexible positioning and simplified maintenance.
Air-cooled fiber laser with power ranging from 20–100 W, based on application requirements.
Functional safety certified (PLe, EN ISO 13849-1), enhancing operator protection in fully automated production environments.
Fully air-cooled operation, eliminating the need for complex cooling systems and reducing maintenance.
Industry-standard interface architecture, with broad voltage support, USB ports, digital I/O, and external safety wiring.
Optional advanced integration accessories, including AOI/CPM vision systems, focus shifter, and encoder inputs for dynamic marking.
Properties
The fibre laser systems in the Business Fibre product series are suitable for use in time-critical manufacturing processes. They specialise in marking metals. Additionally, these systems can be used to mark plastics, ceramics and laser films. For maximum flexibility, systems in the Business Fibre series allow the user to adjust the pulse waveforms to their requirements. The result is superb, precision marking results that satisfy even the most stringent quality standards. All fibre lasers feature an air cooler. This enables the system to run for longer without the need for laborious maintenance work. These systems are a laser safety class 4 solution.
Software
The modern software architecture of the Magic Mark marking software enables selective access to all available functions and allows users to control the laser and laser peripherals (WS/axis of rotation, etc.).
Internal programming:
• VB.NET [Winwrap Basic]
• Integrated into Magic Mark
External programming:
• C#.NET [MS Visual Studio]
• Access to class library
Optionally, plugins such as the code or script module can be used to add extra functions to the Magic Mark software.
Compatible Manual Workstation
Rotary indexing table
Workstation Professional XXL
Compatible Accessories
Tool reader
AOI
CPM
Software connections
AOI plugin
Contour Tool
Data Import plugin
FoilStar plugin
GS1-Generator
OCR Plugin
Ruler Scale plugin
Z Segmentation plugin
Built to withstand harsh factory conditions — robust IP64-rated housing resists dust and splashes.
Flexible deployment — rack-mount or tabletop, adaptable to production line layouts.
Enhanced operational safety — certified to high safety standards (PLe), ideal for automated environments.
Reliable and low-maintenance — air-cooled design keeps operation smooth without elaborate cooling systems.
Integrates seamlessly — supports industry-standard communication and automation interfaces making it ideal for smart manufacturing.
