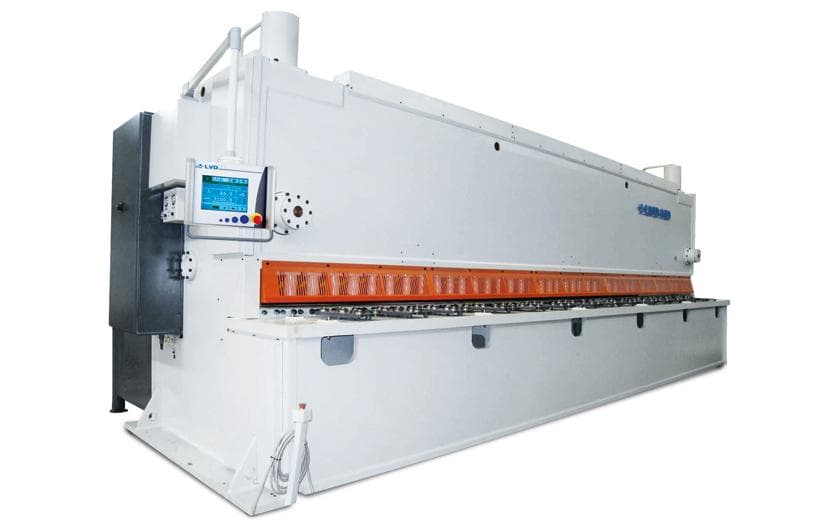

HGS Shears

HGS Shears

Affordable heavy-duty shearing
The HGS guillotine shearing machine makes heavy-duty shearing affordable. Frame and cutting beam offer maximum rigidity and resistance to deflection and torsional force for accurate shearing of mild steel up to 30 mm. This guillotine shear features four cutting edges that can be turned three times before grinding for increased production life. Cost-efficiently manufactured, HGS shears fit your needs and your budget.
  • Intuitive touch screen control
  • Adjustable rake angle for optimum cutting control
  • Rake angle adjustment at 0.5 degrees minimizes distortion when shearing narrow strips, reduces or eliminates corkscrew and bow distortions
  • Automatic calculation of blade clearance and cutting angle based on material and thickness
  • Squaring / front arms
  • From 0.39″ (10 mm) to 1.18″ (30 mm) cutting capacity
  • Maximum shearing capacity: mild steel 45 kg/mm from 0.39″ to 1.18″ (10 mm to 30 mm), depending on model; stainless steel 60 kg/mm from 0.23″ to 0.78″ (6 mm to 20 mm), depending on model
  • Cutting length: from 122″ to 314″ (3100 mm to 8000 mm), depending on model

Expert Advice and Servicing

Our experience in the sheet metal manufacturing and engineering business stretches back to the 1960s. This means you receive expert advice and service from engineers who understand your business. GWB Machine Tools is Australia’s sole distributor for LVD quality machinery, Lissmac handling and processing machines, MSS nitrogen generators and Kohler leveling machines.
