Production-related storage as a single or double tower
-
Freestanding installation close to processing machines
-
Reduced time, effort and material movement paths
-
Intuitive and fast operation for non-specialist personnel
-
Centrally arranged, intuitive control elements
-
Simple storage compartment selection with automatic lifting crossmember
-
Modular design for quick installation and commissioning
-
System can be expanded later (e.g. ERP interface or additional storage tower)
-
Optimal use of floor area by utilising full room height
-
Stack height optimised for different materials
-
Up to 65 storage spaces on a minimal footprint
-
Safe and fast material handling with an integrated lifting unit
-
Automatic transport of pallets to ergonomic working height
-
Built-in safety device for operator safety and material protection
-
Easy integration with laser cutting machines from various manufacturers
-
Compatible with different ERP systems
-
Flexibility to change integrated machines or systems at a later stage
-
Shelf system – Powder-coated steel construction; FLEX version with vertical lift rails; prepared for later extension (e.g., additional tower or LaserFLEX automation)
-
FLEX Lifting Forklift – Transports system pallets on the racking system; sensors monitor process reliability
-
Unpacking table – Facilitates unpacking of laminated cores; plastic-capped stamps for scratch-free handling; adjustable for different transport pallets
-
Depalletising station – Allows raw material to be placed comfortably on a raw material pallet; includes alignment aids for precise sheet placement
-
Warehouse Management Software (WMS Basic) – Modern warehouse software tailored to Remmert systems; integrates with SMART Control system
-
Machine interface – Coordinates functions between the Remmert system and other machines; exchanges lock signals and safety functions
-
Safety equipment – Protective fences, gates, light barriers, and safety/emergency controls
-

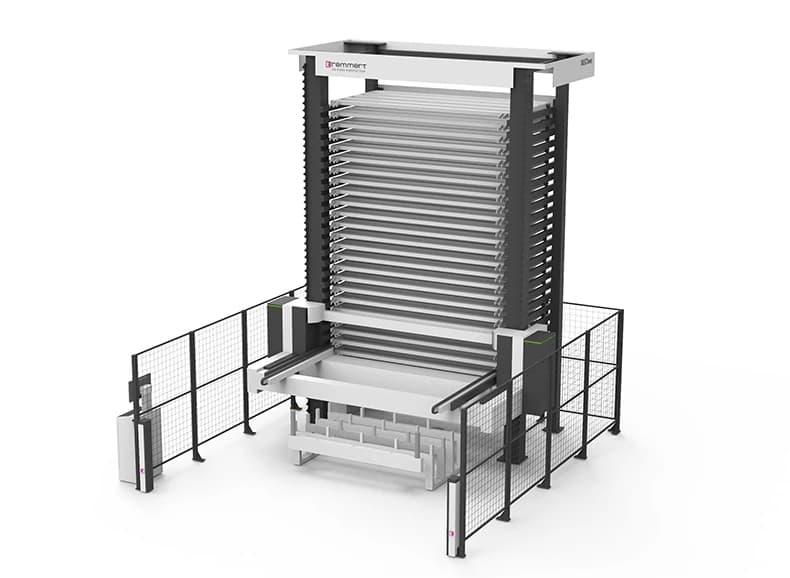

BASIC Tower EASY – Simplified automated storage for sheet metal and flat goods; focuses on essentials for space-saving storage with low personnel requirements
-
BASIC Tower FLEX – Highly flexible; adaptable to material formats, heights, goods stations, and direct machine/IT connections; modular system suits almost all conditions
-
BASIC Tower FLEX Double Tower – Combines two towers into one unit; includes at least one goods station, configurable as transverse or longitudinal carriage
-
BASIC Tower FLEX Variable Goods Stations – Configurable with different storage and retrieval stations; longitudinal stations can be one- or two-sided; additional stops possible
| Feature | Variant | EASY | FLEX (Single) | FLEX (Double) | FLEX (Variable Stations) |
|---|---|---|---|---|---|
| Max Format | 3015 | 3015 | 4020 | 6020 | |
| Dimensions b × L [mm]* | Single tower | 5700 × 4850 | 5800 × 5400 | 7150 × 6500 | 7000 × 9300 |
| Dimensions b × L [mm]* | Double tower | - | 9400 × 5400 | 12050 × 6500 | 11600 × 9300 |
| System height [mm] | 4000 – 8000 | 3920 – 14990 | 4490 – 15125 | 5865 – 14015 | |
| Payload per storage space | 3 t | 3 t | 3 / 5 t | 5 t | |
| Load carrier | System range | System range | System range | System range | |
| Max. Lifting speed | 6 m/min | 16 m/min | 16 m/min | 16 m/min | |
| Max. Drawing speed | 20 m/min | 20 m/min | 20 m/min | 20 m/min | |
| Number of storage spaces | Single tower | 15 – 37 | 14 – 75 | 17 – 75 (3t) / 53 (5t) | 14 – 56 |
| Number of storage spaces | Double tower | - | 27 – 149 | 27 – 149 (3t) / 105 (5t) | 28 – 113 |
| Loading heights per storage ** | 90 / 270 | 90 / 270 | 60 / 240 (3t) / 90 / 340 (5t) | 55 / 280 | |
| WMS | Optional | WMS BASIC | WMS BASIC | WMS BASIC |
