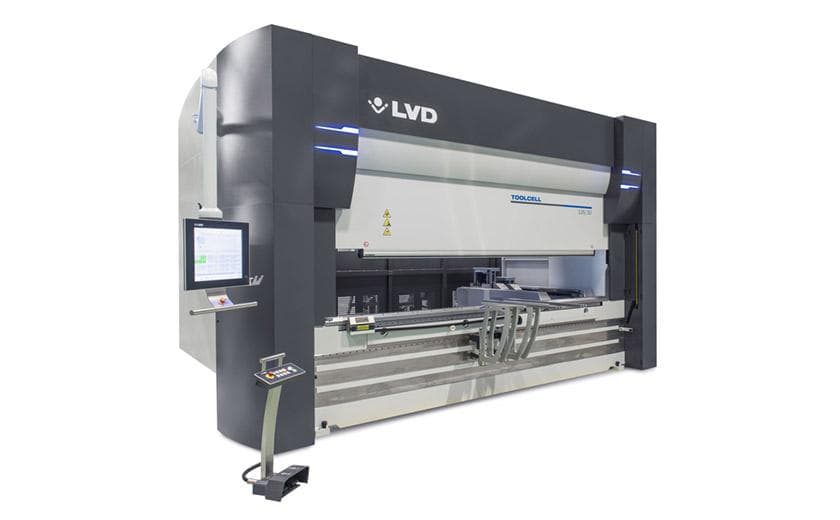

Reducing press brake set up is a universal challenge. No matter the size or complexity of the bending application, tool setup time is the most signi cant bottleneck to bending productivity.

The trend toward reduced batch sizes and shortened lead times, as well as the need to reduce stock levels and manufacture the exact quantity drive the requirement to frequently change tools. Optimizing tool setup is fundamental to improving bending productivity.

Large capacity tooling stadium maximizes tooling  exibility.

KEY FEATURES

ToolCell-ENG_2014-2

YOUR CHALLENGE

Changing press brake tooling more than six times a day

Parts requiring complex or multiple bend stations

Time lost due to incorrect positioning of tooling sets

Time lost retrieving tools or searching for tools in use on other machines

Diminished overall throughput

OUR SOLUTION

Automated tool load/unload while operator is preparing the next job

All tools precisely positioned in the machine

No small adjustment of tool sets required

Large library of tools held within the ToolCell ensures maximum fl exibility

RESULT

Increased productivity and throughput

KEY FEATURES

Automatic Tool
Loading &
Unloading

ToolCell-ENG_2014-3

MAXIMIZES PRODUCTIVITY

Using ToolCell reduces unproductive time, optimizing bending operations throughout the day.

TOOLING STADIUM

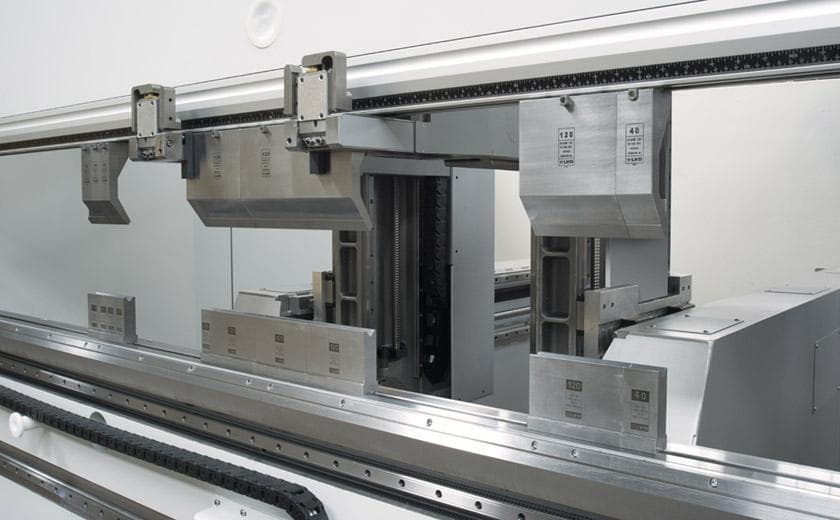

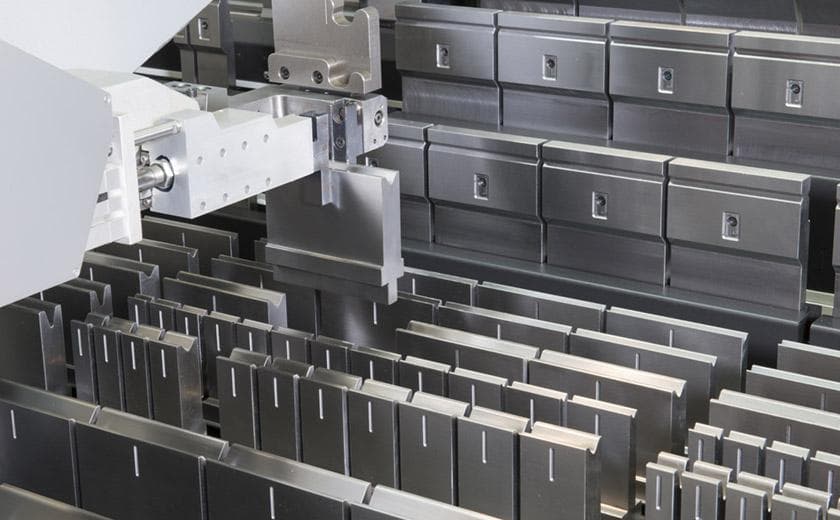

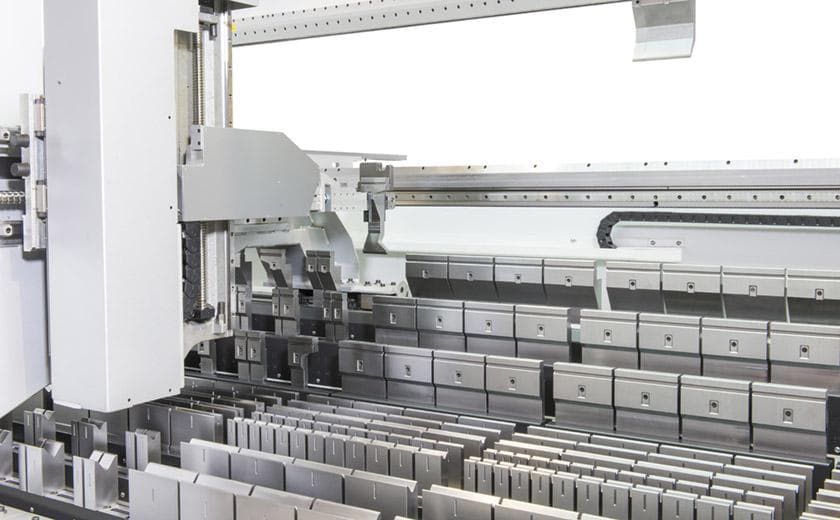

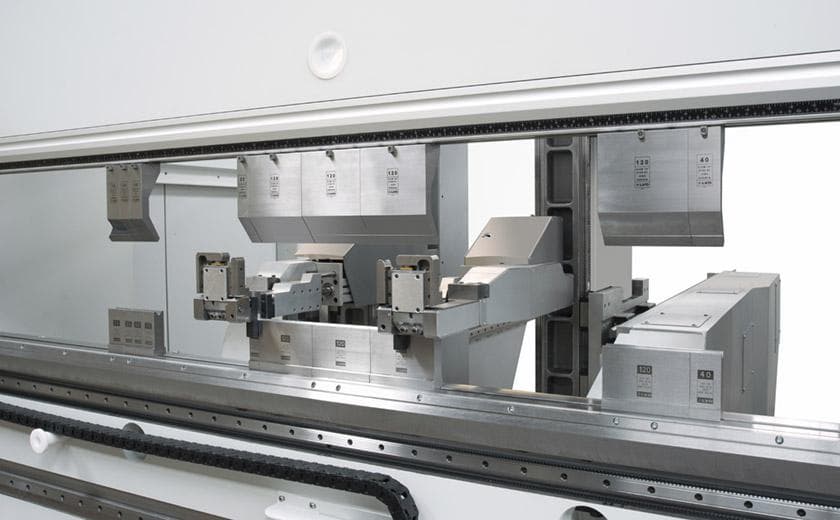

No more searching for the tools you need, a comprehensive selection of tools are held in the ‘tooling stadium’ within the machine. Con gured to suite requirements, 2 complete lengths of self-seating top tooling (punches) and 5 complete lengths of bottom tooling (Vee dies) can be held within the machine. While your operator is preparing the parts for the next job the machine will automatically unload the previous tool set up and precisely load the next, ready for production.

TOUCH-B 19” CONTROL

ToolCell features LVD’s latest touch screen graphical user interface for fast, intuitive and ef cient operation.

EASY-FORM® ADAPTIVE BENDING SYSTEM

ToolCell is equipped with LVD’s patented in process angle monitoring and correction system Easy-Form® on board to ensure that all your parts are formed perfectly from the  rst to last part.

CADMAN-B OFFLINE PROGRAMMING

Parts can be programmed of ine using LVD’s CADMAN-B software programs and 3D-simulation  les can be seamlessly transferred to the machine ready for production.
