Press Brake Tooling

TOOLING PRESS BRAKES

High Quality Press Brake Tooling

633241761149873594

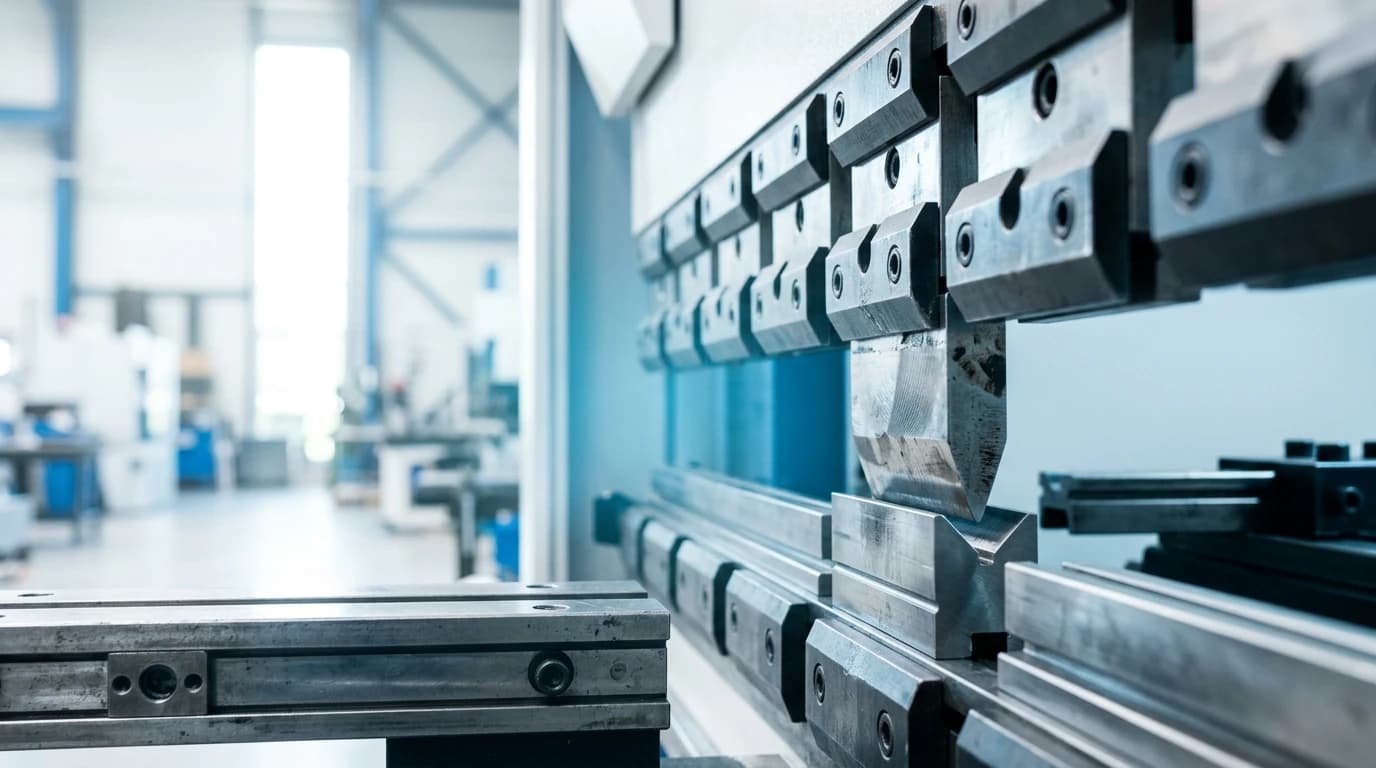

LVD provides a full range of standard press brake tooling to accommodate machines from 400 to 3200 kN (40 to 360 tons). A variety of single, multiple and adjustable V-dies are also available.

Our exclusive STONE® radius (LVD patented) V-dies assure accurate bend angles along the entire bend length. This tooling is produced with a progressive radius on both sides of the V-opening, allowing the material to flow into the die more evenly and with less drag. This unique design reduces the friction between the material and the die.

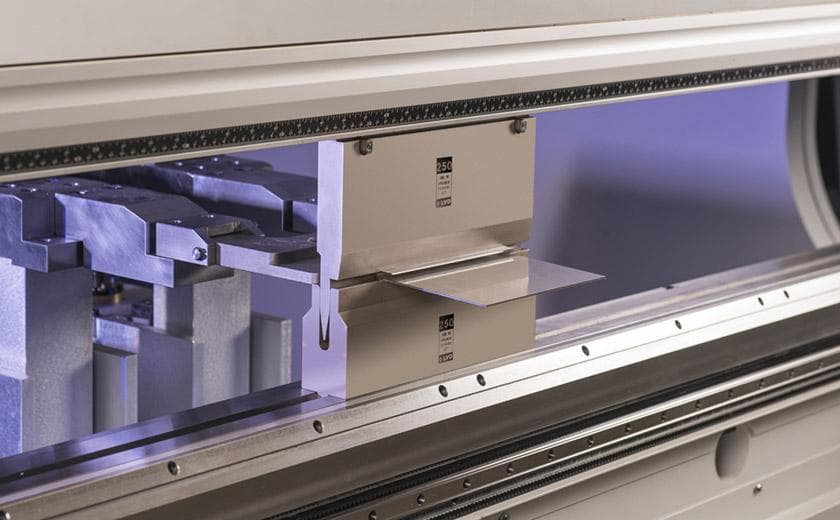

A full range of vertical removable tooling is also available. This style facilitates quick and easy tool changes for enhanced flexibility and productivity. Single tools or complete tooling sets are available.

LVD offers specialized tooling to accommodate press brakes over 3200 kN (360 tons). Designed to withstand extremely high forces, this tooling provides reliable performance and long life under rugged production conditions.

LVD has developed specialized tooling for many custom applications. Contact your representative for information on how we can meet your application needs.

STANDARD PUNCHES

MACHINES 350-2200 kN

TOOLINGPP2012ENG-2

MACHINES 2200Plus - 6400 kN

TOOLINGPP2012ENG-22

Adapters

adapater

DEFINING PUNCH HEIGHT

m

Clamping

clu

DIES

SINGLE V-DIES

TOOLINGPP2012ENG-4

HEMMING DIES

TOOLINGPP2012ENG-42

MULTI V-DIES

TOOLINGPP2012ENG-43

STONE® Radius

TOOLINGPP2012ENG-5

STONE® radius assures accurate bend angles along the entire bending length. LVD tooling is produced with a progressive radius on both sides of the V-opening, allowing the material to flow into the die more evenly and with less drag. This unique design of the V-die reduces the friction between the material and the die encountered when bending, by creating a rolling condition as the material enters the die.

STONE TOOLING ALSO PROVIDES:

Reduced tool wear

Tool interchangeability

Reduced residue on stainless steel

Reduced tool wear

Reduced tool wear

Reduced tool wear

TOOLINGPP2012ENG-52

TOOLING

COMPLETE TOOLING SETS

TOOLINGPP2012ENG-6

SPECIAL TOOLING

TOOLINGPP2012ENG-62

APPLICATIONS

TOOLINGPP2012ENG-63

Bending Chart

TOOLINGPP2012ENG-72

Cadman®-B

TOOL DATABASE

Tools can be defined by a free shape drawing or a drawing in DXF format. The tool parameters and additional information can be stored in a database for compositions of stations.

AUTOMATIC TOOLING SET-UP ACCORDING TO THE PART

The system automatically calculates the minimum station quantity required to bend the part and indicates the position to set up tooling. The station gaps and punch horns are automatically applied, if needed.

TOOLINGPP2012ENG-7
